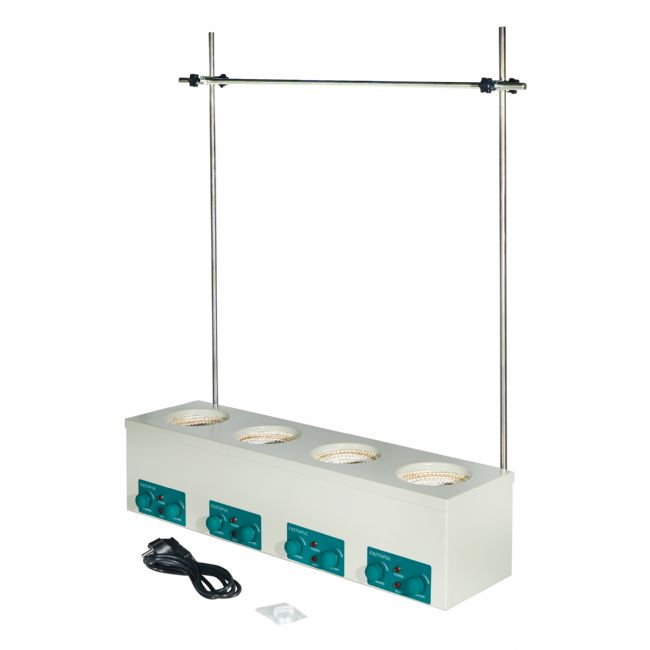

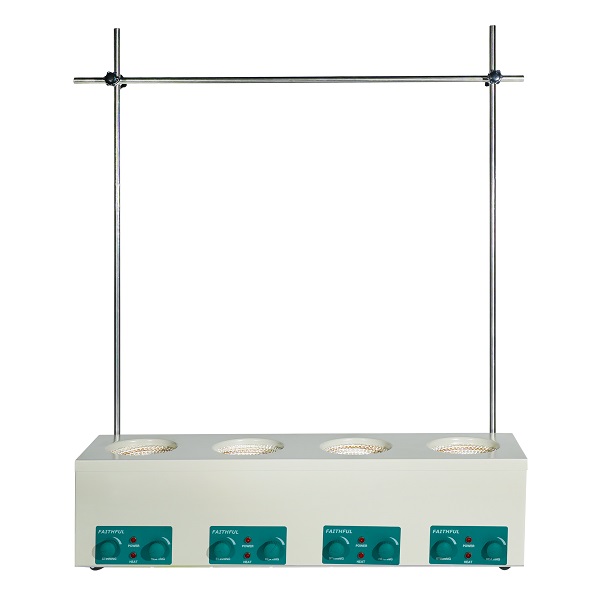

Several Rows Magnetic Stirring Heating Mantle

Product Description

Uses:
It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating.

Characteristics:
1. Cold rolling sheet stretching and spraying exterior.
2. Electronic temperature regulation mode with characteristics of stepless speed adjustment, uniform temperature, fast heating-up, and safety and durability.
3. Featured by anti-corrosion, age-resistant, durable and safe.
4. Several Rows type, produce as Customer inquiry, beautifully shaped, easy to operate and effective.

Product Images

Technical Parameters

Model	Rows	Capacity (ml)	Max use Temp(ºC)	Power(W)	Working time	Exterior Size(mm)	Packing Size (mm)	N.W (Kg)	G.W. (Kg)
98-IV-B	Two Rows	100	450	100×2	Continuous	280×140×106	320×180×190	4	5
		250		150×2		320×160×170	360×190×200	4	5
		500		250×2		360×180×180	400×220×210	4	5
		1000		350×2		420×210×200	460×250×230	7	8
98-IV-B	Four Rows	100		100×4		530×140×160	570×180×190	8	10
		250		150×4		610×160×170	650×190×200	8	10
		500		250×4		690×180×180	730×220×210	8	10
		1000		350×4		810×210×200	850×250×230	14	16
98-IV-B	Six Rows	100		100×6		820×140×160	860×180×190	12	15
		250		150×6		940×160×170	980×190×200	12	15
		500		250×6		1060×180×180	1100×220×210	12	15
		1000		350×6		1240×210×200	1280×250×230	21	24
