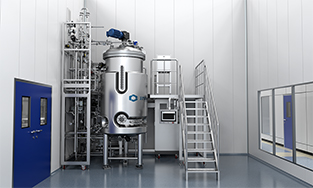

The stainless steel fermentors and bioreactors produced by Jichen Biotechnology cover the
pilot stage to the production stage. And It can be highly customized according to customer
process requirements. They are suitable for microbial and mammalian cell culture and use
industrial standard components from international first-class brands, making them easy to
integrate with any process system.
Product features
1. Control system
• PLC control system with HMI SCADA
• Meets GAMP 5 guidelines
2. Precision Ventilation
• Surface ventilation
• Deep ventilation
• Equipped with Gas Mass Flow meter (MFC)
• Pressure reducing valve
• Purging after SIP is possible
3. Sampling and harvesting
Aseptic sampling
• Special double port sampling valve
• The sampling device can be used multiple times
• The sampling valve can be steam cleaned and sterilized
4. Multiple reeding options
Four-valve manifold
• 2 pneumatic diaphragm valves for transmission, steam, CIP/SIP drainage
• 1 manual diaphragm valve and 1 pneumatic diaphragm valve for isolation
• Steam traps are used for the removal of condensed water
• Temperature sensors for sterilization control/moni toring of SIP processes
5. Magnetic stirring
Magnetic stirring module
• No need for double mechanical seals
• No mechanical seal condensing system required
• Stable seal, easy to clean
Speed range: TBD
• Detection accuracy ±1rpm
• Control accuracy 5%
6. CIP/SIP and temperature control
7. Other items optional
• Double mechanical seal condensing mounting
• Mechanical defoaming
