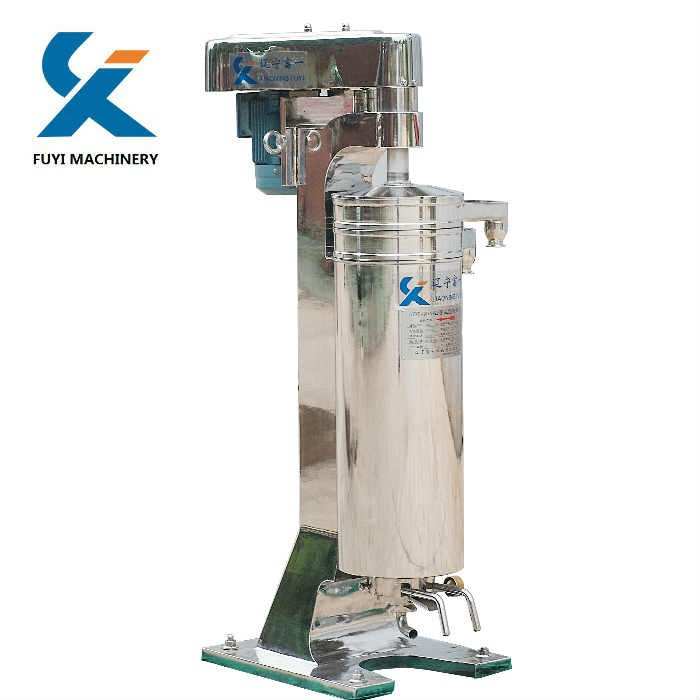

Fuyi tubular centrifugal separator
Liaoning Fuyi Machinery is one of the most famous centrifuge manufacturers in China with 30 years mature experience and techniques. "China Tubular Separator National Standard" is drafted by our company. Nowadays our customers are from global market which give good feedback for our products. We promise supply customers the best quality and service in China.
General Description
FUYI GF type tubular separator is specially used in oil water separation project ,Because high rotation speed and centrifugal force , the separation effect is very good .
Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Two Series of Tubular Separator :
●GF series tubular separator : Liquid Liquid solid three phase separation .
●GQ series tubular separator :Liquid solid two phase separation

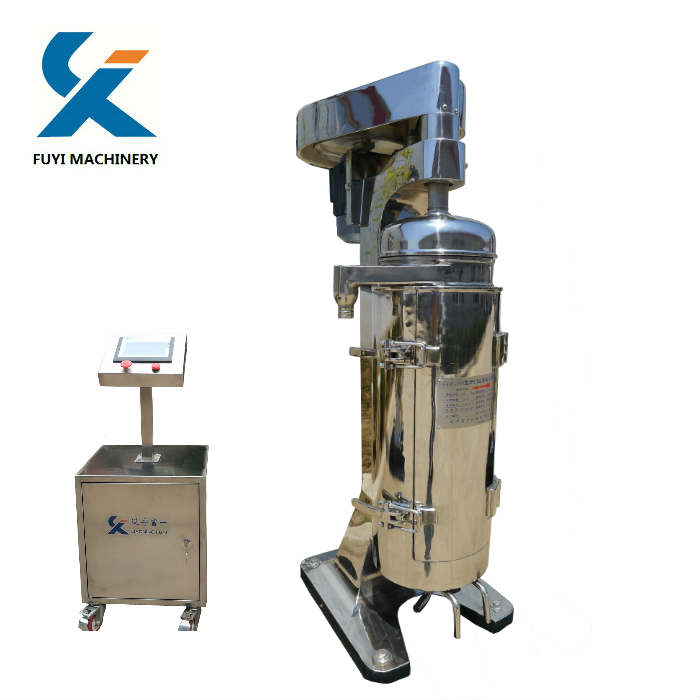

Our company have developed model "Front Open Tubular Separator" and model "Swing Tubular Separator" in order to reduce labor intencity, thereby Improve Work Efficiency.
Working principle diagram
Technical Parameter:
|
Model
|
GQ45
|
GQ75
|
GQ105
|
GQ120
|
GQ150
|
|
Inner diameter of drum (mm)
|
45
|
75
|
105
|
125
|
142
|
|
Settlement volume (L)
|
0.45
|
2
|
5.5
|
7.4
|
10
|
|
Water capacity (t/h)
|
0.1
|
0.5
|
1.2
|
2
|
3
|
|
Drum speed (r/min)
|
28000
|
19000
|
16300
|
15000
|
14000
|
|
Maximum separation factor
|
19800
|
16770
|
15700
|
15750
|
15570
|
|
Motor power (kw)
|
0.6
|
1.5
|
1.2
|
2
|
3
|
|
Overall dimension (mm)
|
500*420*760
|
760*450*1120
|
840*500*1600
|
900*550*1600
|
1020*600*1600
|
|
Machine weight (kg)
|
120
|
300
|
500
|
550
|
600
|
