Products Description

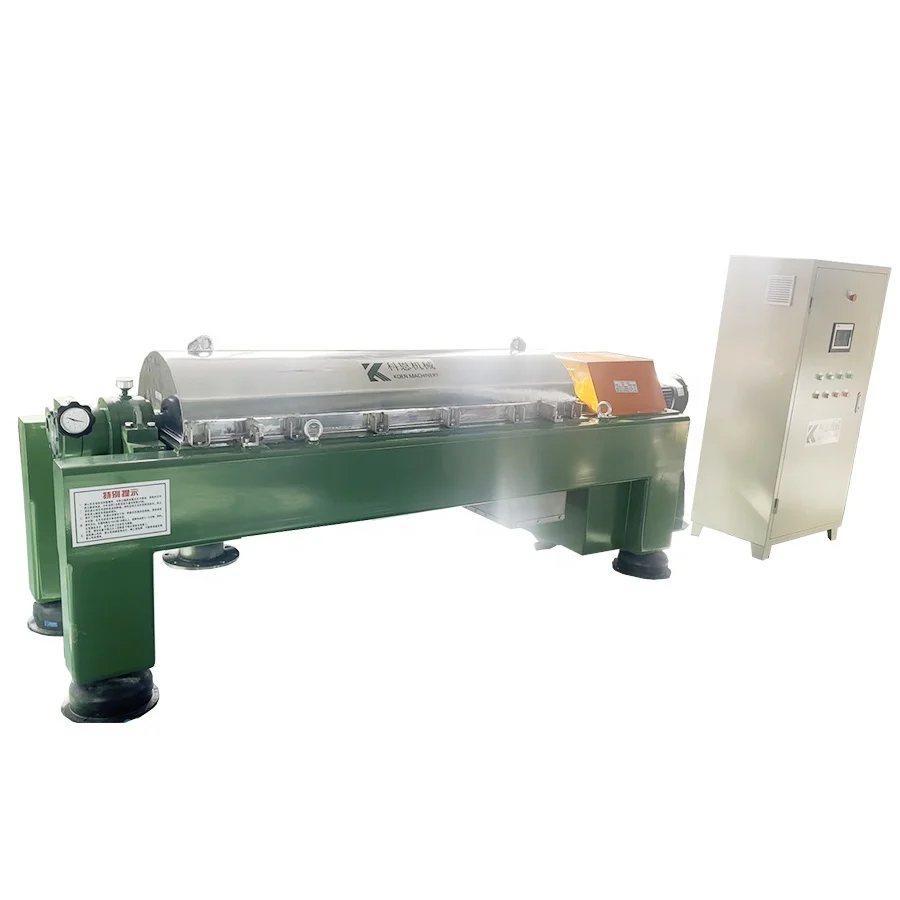

LWS Crude oil 3 phase decanter centrifuge
3 phase liquid-liquid-solid Decanter centrifuges, also called tricanter , Taking advantage of the principle that the heavy
liquid,light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different
sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid

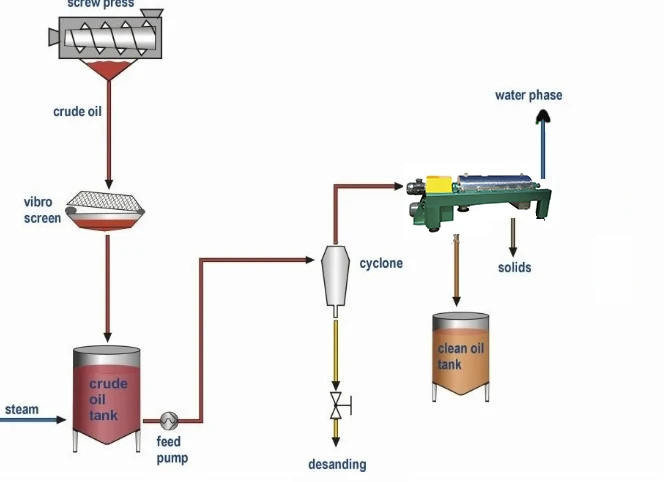

particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the crude oil separation.Specially used for remove sludge and water from crude oil.
liquid,light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different
sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid
particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the crude oil separation.Specially used for remove sludge and water from crude oil.
Separation principle:
The decanter is driven by two motors. The main motor drives the bowl and the housing of differential mechanism to rotate through belt, while the auxiliary motor drives through the belt pulley the input shaft of the differential mechanism to rotate, which, after speed change, drives the helical to rotate. In this way the bowl and helical rotate in the same direction but with certain differential speed. When the material to be processed (blended liquid consisting of solid phase and liquid phase) enters the inner cavity of the helical propeller through feeding pipe, after being accelerated by the two-way conical accelerator, it flows out of the material outlet, and flows into the bowl wall through inner cloth cylinder. The light, heavy and residue phases that make up the suspending liquid, under the action of different centrifugal force, the residue phase quickly subsides onto the inner wall of the bowl, and the heavy phase adheres close to the surface of the residue phase rather slowly, while the light phase adheres close to the surface of the heavy phase rather slowly, forming a dividing plane between the two phases. As the sedimentation of heavy phase increases, the top end of helical blade enters into the sedimentation layer of heavy phase. At this time the bowl and helical propeller are rotating in the same direction at high speed and with a certain difference in speed. This relative difference in rotation speed enables the helical to propel heavy phase particles to move toward the material outlet at the small end, whereas the light phase, through the helical passage, flows toward the liquid phase outlet at the large end, and flows out through the overflow plate with different R values.
The decanter is driven by two motors. The main motor drives the bowl and the housing of differential mechanism to rotate through belt, while the auxiliary motor drives through the belt pulley the input shaft of the differential mechanism to rotate, which, after speed change, drives the helical to rotate. In this way the bowl and helical rotate in the same direction but with certain differential speed. When the material to be processed (blended liquid consisting of solid phase and liquid phase) enters the inner cavity of the helical propeller through feeding pipe, after being accelerated by the two-way conical accelerator, it flows out of the material outlet, and flows into the bowl wall through inner cloth cylinder. The light, heavy and residue phases that make up the suspending liquid, under the action of different centrifugal force, the residue phase quickly subsides onto the inner wall of the bowl, and the heavy phase adheres close to the surface of the residue phase rather slowly, while the light phase adheres close to the surface of the heavy phase rather slowly, forming a dividing plane between the two phases. As the sedimentation of heavy phase increases, the top end of helical blade enters into the sedimentation layer of heavy phase. At this time the bowl and helical propeller are rotating in the same direction at high speed and with a certain difference in speed. This relative difference in rotation speed enables the helical to propel heavy phase particles to move toward the material outlet at the small end, whereas the light phase, through the helical passage, flows toward the liquid phase outlet at the large end, and flows out through the overflow plate with different R values.
Features :
* All parts coming into contact with the product are made of stainless steel.* 3-phase AC motor for controlled torque starting via frequency converter
* Approximately 80 to 90 % of the oil is recovered.
* Low personnel costs due to continuous and automatic operation.
* Highest g-force for higher solids output
* Adjustable bowl speed via VFD
* Automatic adjustment of differential speed via VFD
* Two motor drive
* Belts for both primary motor and secondary motorFeatures
* All parts coming into contact with the product are made of stainless steel.
* 3-phase AC motor for controlled torque starting via frequency converter
* Approximately 80 to 90 % of the oil is recovered.
* Low personnel costs due to continuous and automatic operation.
* Highest g-force for higher solids output
* Adjustable bowl speed via VFD
* Automatic adjustment of differential speed via VFD
* Two motor drive
* Belts for both primary motor and secondary motor

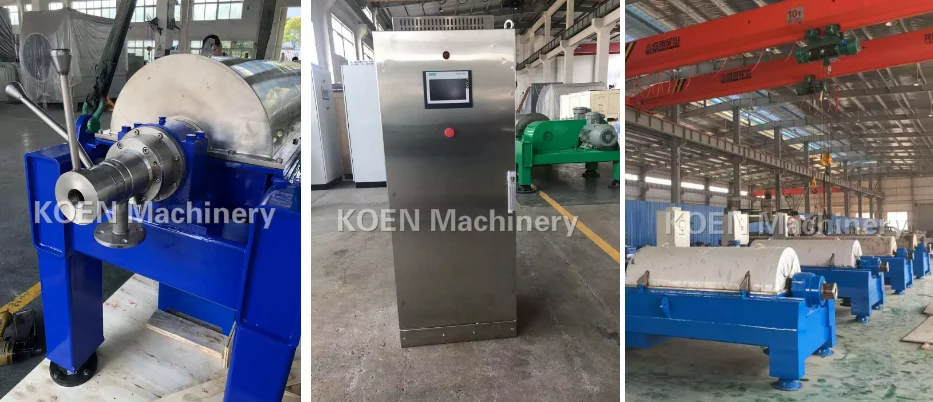

Details Images
Product Paramenters
|
Model
|
Drum Dia (mm)
|
Bowl Speed (r/min)
|
G-force
|
Main Motor Power
(kW) |
Weight (kg)
|
Dimension (L*W*H) (mm)
|
|
LWS355*1460
|
355
|
4000
|
3100
|
15
|
2020
|
3235*1010*1029
|
|
LWS420*1680
|
420
|
3800
|
3080
|
37
|
3500
|
3459*1320*1303
|
|
LWS450*1800
|
450
|
3600
|
3040
|
45
|
4200
|
4020×1050×1180
|
|
LWS500*2000
|
500
|
3400
|
3000
|
45
|
4600
|
4054*1650*1431
|
|
LWS550*2200
|
550
|
3000
|
2800
|
55
|
5200
|
4570×1380×1600
|
-
Koen Machinery Co.,Ltd, We are the professional manufacturer of pharmaceutical machinery, separation equipment,food machinery, liquid filling machine and packing machine. specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and pharmacy project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
