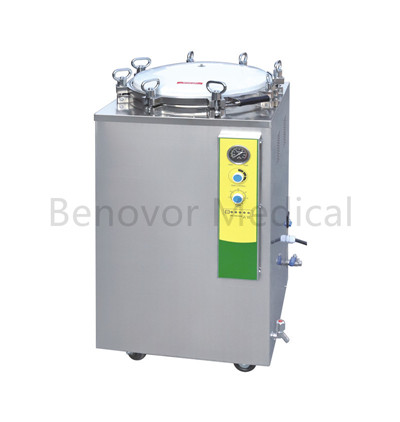

SUS304 Stainless Steel Vertical Loading Pulse Vacuum Autoclave,Benovor_specification/price/image

Product Detail
Company Profile

USE

The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system , over heat and over pressure protection system, Which are reliable for the sterilizing effects,convenient of operation and energy conservation, They are ideal equipments for clinics ,scientific research institutes and other organizations to sterilize surgical instruments ,fabrics ,glasses , culture medical etc.

Feature:

1. Microcomputer controlled, digital display of working statues, touch type key.
2. It dynamically shows the temperature, pressure time, vacuum rate and the cycle status.
3. With fully automatically route of water inlet, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying.
4. 3 times pules vacuum, the vacuum rate -0.081Mpa after that, Which ensure the completely extracting of inner air from the dressing, rubber and fluid, the user also could set the program as they need randomly.
5. Equipped with the PT/TT testing connector, easy for running the testing.
6. Multiple pulse vacuum drying after sterilizing, which ensure the good sterilizing result.
7. Equipped with 0.22um bacteria filter, it ensure the air which enter the inner vacuumed chamber is sterile, avoid the second time contamination.
8. Hand wheel type for quick-open the door. Self-inflating type seal.
9. Adopted with immersed heating tube, with high heating effciency.

10.Steam-water inner circumation system：no steam discharge, and the environment for the sterilizing will be clean and dry.
11. Automatically shut off with beep reminding after sterilization.
12. Fully high quality stainless, equipped with double stainless steel baskets.

Parameters

Model	HY-S50V	HY-S75V	HY-S100V
Capacity	50L	75L	100L
Chamber size	340*550mm	400*600mm	440*650mm
Working pressure	0.22MPa
Working temperature	134℃
Heat average	≤±1℃
Time average	0-99min
Temperature adjust range	0-134℃
Power	4.8KW/AC220V.50HZ	5KW/AC220V.50HZ	6.1KW/AC220V.50HZ
Overall dimension(mm）	6604601160	7005101250	7005101250
Transport dimension(mm）	7405501270	7806001380	7806001380
G.W	137kg	168kg	172kg
N.W	114kg	142kg	146kg
