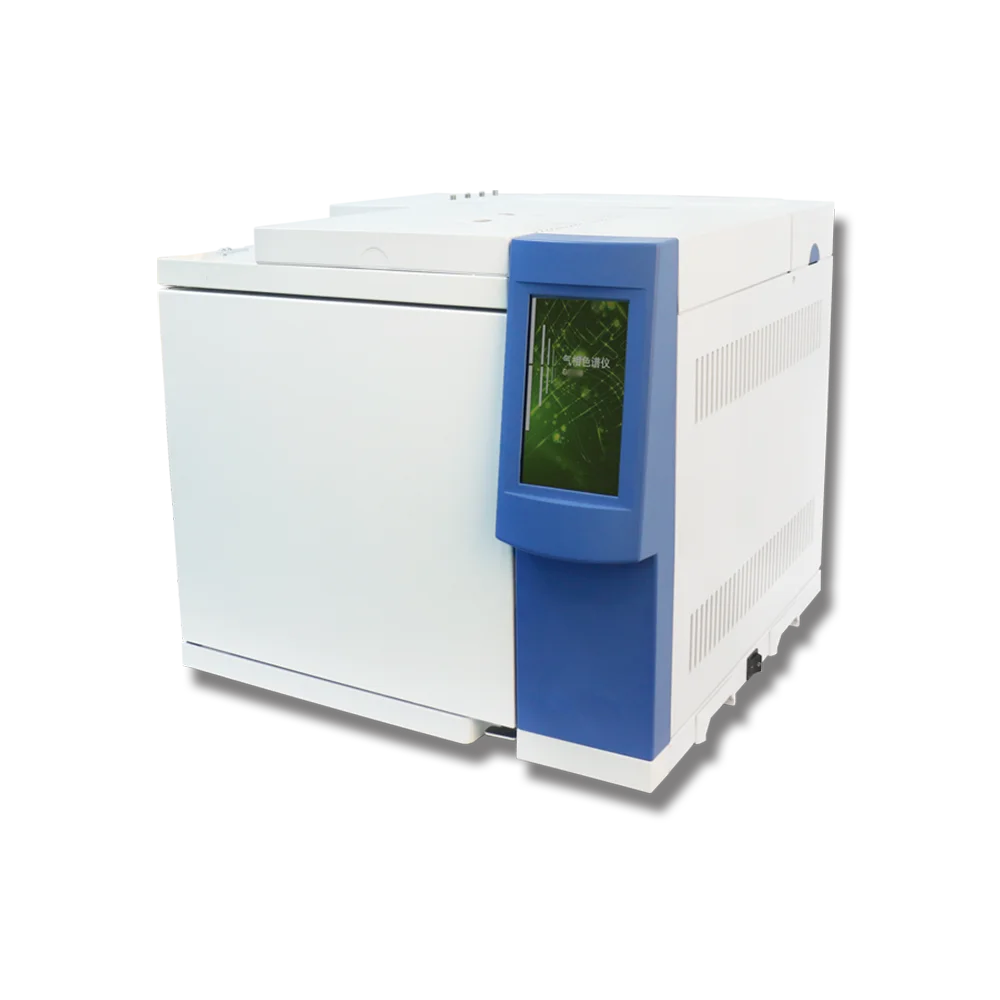

GC112N Lab Analysis Instruments High Performance Gas Chromatograph With Cheap Price

GC112N gas chromatograph is suitable for trace detection of environmental protection, air and water pollution, analyzing poisons,monitoring and research, biochemistry, clinical application, pathology and virus research, food, petrochemicals, petroleum processing, oil analysis, geological , prospecting research, organic chemistry, synthesis, and quarantine, especially fit for power system, industrial and mining frontline laboratories and schools.

Features

* Synchronous bidirectional control with touch screen on the GC112N. * The 7-inch color touch screen on the GC112N can display the flow rate and pressure value of the electronic gas path. * The multi core, 32-bit embedded hardware system ensures the reliable operation of the instrument. * One key start up function. * The extendable synchronous external trigger function can initiate GC112N and workstation through external signals, such as automatic sampling device, thermal analyzer and so on. * The instrument has sound system self-checking function and malfunction automatic identification function. * The instrument has 8 external event interface with extendable functions, which can work with a variety of functional control valve, performing according to the set timing. * The memory function can store 20-sample test modes. * RS232 communication port and LAM port. * N2000 chromatography workstation.

Specifications

Column temperature box
Content product	22L
Temperature control range	5℃ ~ 400℃ at room temperature
Temperature control accuracy	±0.1℃
Heating rate	0.1 ~ 60℃ / min
Program temperature rise order	9
Program heating repeatability	≤ 2%
Cooling way	open the door after
Cooling speed	≤10 mins (250℃ ~ 50℃)
Control software function	(GC112N only)
Column temperature box control	Detector control Injector control Map display
Sampler
Temperature control range	7℃ ~ 420℃ at room temperature
Temperature control method	independent temperature control
Carrier gas flow control mode	constant pressure
Number of simultaneous installations	3 at most
Type of injection unit	filling column, shunt
Split ratio	split ratio display
Cylinder pressure range	0 ~ 400kPa
Cylinder pressure control accuracy	0.1kPa
Flow setting range	H2 0 ~ 200ml / min N2 0 ~ 150ml / min
Detector
FID, TCD optional
Temperature control	Max. 420℃
Number of simultaneous installations	2 at most
Ignition function	automatic
Hydrogen flame ionization detector (FID)
Detection limit	≤ 3×10 g/s (n-hexadecane)
Baseline noise	≤ 5× 10-14A
Baseline drift	≤ 6× 10-13A
Dynamic range	107
RSD	3% or less
Thermal conductivity detector (TCD)
Sensitivity	5000mV•mL/mg (n-cetane)
Baseline noise	≤ 0.05 mV
Baseline drift	≤ 0.15mV / 30min
Dynamic range	105
Supply voltage	AC220V±22V, 50Hz±0.5Hz
Power	3000W
