- 300ml/min alkaline electrolyzer cell hydrogen production unit
- Product Detail
- Company Profile
Product introduction:

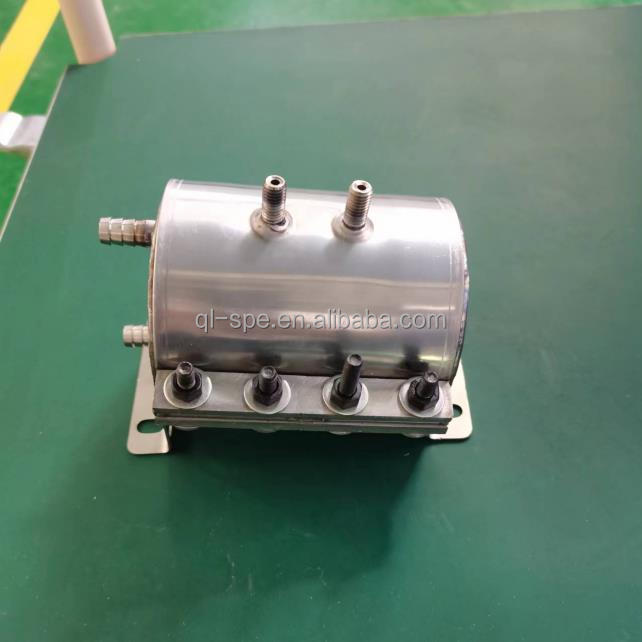

C300 alkaline hydrogen electrolyzer cell is to electrolysis KOH liquid to produce hydrogen.It split water into pure hydrogen and pure oxygen.
it is key part of pure hydrogen production equipment.
Application:
1.Key part to make hydrogen production equipmen
2.Produce pure hydrogen
3.Produce pure oxygen
SHANDONG SAIKESAISI HYDROGEN ENERGY CO.,LTD
TEL: + 0531-58795166
FAX: +86-531-58795199
EMAIL: sales01ATql-spe.com
MOBILE:+8618615696905
ADD:NO.51 Gongyenan Road, High-tech Development Zone,Jinan,China
Working Principle:
The operational principle of this instrument is traditional electrolyzing lye. The conducting medium in the cell
is water solution of KOH. The membrane between the two electrode chambers is for the navigation electrolysis
equipment. After electrifying direct current, the electrochemical reaction of water molecule occurs. It produces
oxygen on the anode, and hydrogen on the cathode. The reaction equation is as follows:
Anode:
2OH--2e →
H2O 1/2O2↑
Cathode: 2H2O 2e
→
2OH- H2↑
Final reaction equation: 2H2O →
2 H2↑ O2↑
The pressure control, protective pressure, flow display and flow tracking are all automatic control. The
hydrogen output is self-regulation according to the using hydrogen flow under stable pressure (in the range of
output flow).
Features and Advantags
1.Easy to operate, safe and reliable, adding lye only for one time, only replenishing distilled water, switching
power on to produce gas(available for several sets of gas chromatography)
2.Drum-shaped electrolysis cell, high-grade stainless steel 316L used as material for electrolysis cell.
3.High electrolysis efficiency. Gas purity and output flow will stay regular under continual use.
Please contact us if you have interest to our Instrument:
-
Shandong Saikesaisi Hydrogen Energy CO., Ltd. is a high-tech and strong innovation team. She has being engaged in producing PEM/SPE Hydrogen Generator from 1992. The chief technical expert is the first one developing PEM/SPE technology in China who has developed Four generation hydrogen generators and some have won the patens and fill in the vacancy in Chinese technology field.
The company choose SPE-Solid Polymer Electrolyte positive ion(proton) exchange membrane to electrolyze pure water which replaces traditional alkali liquor hydrogen production. This technology has won BECIA golden medal and certificate of patent.
Because of good quality, some products have got CE certification(No.E/EC13840511537). Now this company can supply the following products:
1.QL Series Hydrogen Generators (0-34000 ml/min).
2.SHC Series Hydrogen Generators(0-500 ml/min).
3.QL Series Pure Air Generator(0-300 l/min).
4.QL Series Nitrogen Generator(0-500 l/min).
5.QL Series Nitrogen and Air Generator(Nitrogen:0-300 ml/min, Air:0-1000 ml/min), Nitrogen, Hydrogen and Air Generator(Nitrogen:0-300 ml/min, Hydrogen:0-300 ml/min and Air:0-1000 ml/min).
6. Other customized generator and Accessory parts.
