Benchtop Turbidity Meter

Multiparameter benchtop turbidity meter with the Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use.

Features:
• Multiparameter benchtop turbidity meter is equipped with a 4.5 inches TFT display.
• 2 to 7 points calibration using the Formazin Standards.

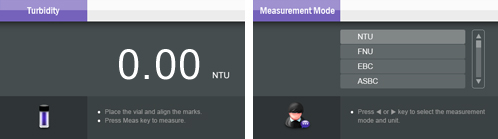

• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• TSS conversion factor ensures the accurate measurement of the total suspended solids.
• Auto-Read function senses and locks a stable reading.

Benchtop Turbidity Meter

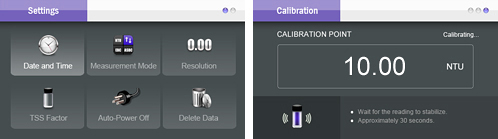

• Setup menu allows setting the date and time, measurement mode, resolution, auto-power off,
etc.
• Password protection prevents the unauthorized calibration and settings.
• Expanded memory stores or recalls up to 200 data sets.
• Reset function automatically resumes all settings back to the factory defaults.
• USB communication interface is easy to transfer data to PC.

Benchtop Turbidity Meter

Applications:
• Industrial wastewater plants
• Municipal water and other industrial applications

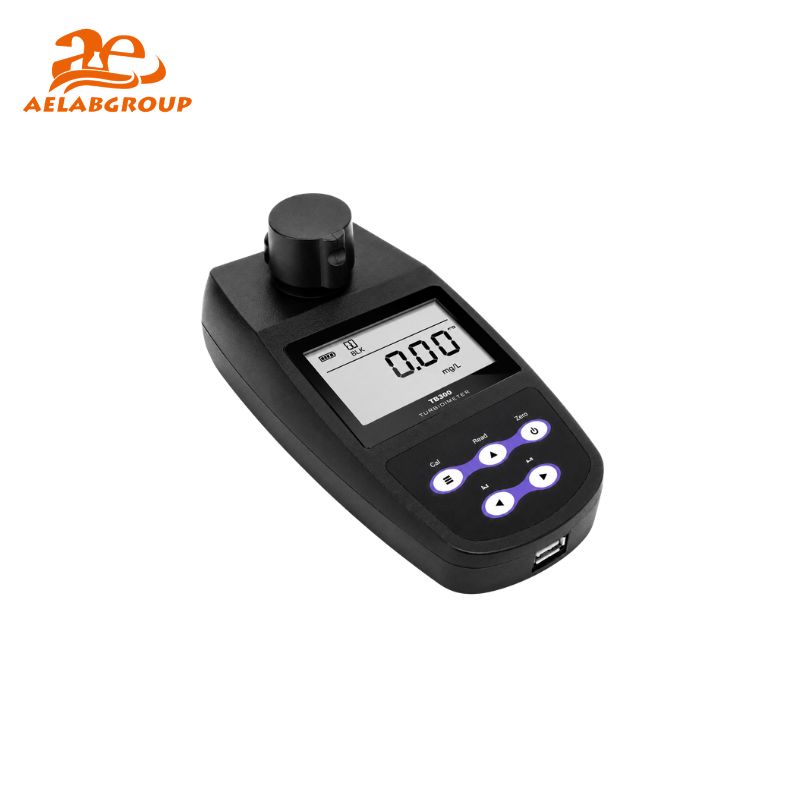

Model	TB100 portable	TB200 desktop
Turbidity
Range	0 to 1100 NTU, 0 to 275 EBC, 0 to 9999 ASBC	0 to 2000 NTU, 0 to 500 EBC, 0 to 9999 ASBC
Resolution	0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 1100 NTU)	0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 2000 NTU)
Accuracy	±2% of reading (0~500 NTU), ±3% of reading (501~1100 NTU)	±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU)
Calibration Points	2 to 5 points	2 to 7 points
Calibration Standards	0.02, 10, 200, 500, 1000 NTU	0.02, 10, 200, 500, 1000, 1500, 2000 NTU
TSS
Range	/	Deponding on the TSS conversion factor
Resolution	/	0.1, 1
Accuracy	/	±3% of reading
General Specifications
Light Source	Infrared-emitting diode (850nm wavelength)
Detector	Silicon photodiode
Stray Light	<0.02 NTU
Sample Volume	30ml
Memory	Stores up to 100 data sets	Stores up to 200 data sets
Output	USB communication interface	USB communication interface
Display	Custom LCD (60×40 mm)	4.5" TFT LCD
Power	3*1.5V AA batteries or DC5V power adapter	DC12V, using AC adapter, 220V/50Hz
Auto-Power Off	15 minutes after last key pressed
Dimensions	180(L)×85(W)×70(H)mm	250(L)×177(W)×96(H)mm
Weight	300g	1.2kg
