- BIOBASE Hot sale 3 Diff Hematology Analyzer
- Product Detail
- Company Profile
-
15 years production experience and 50 professional engineers
- Strong quality control team and technial production
Best service from Camille

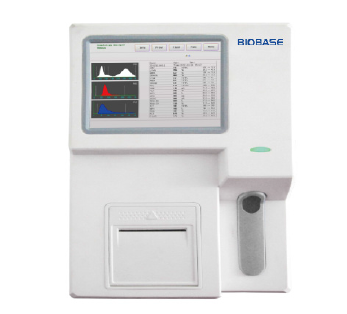

BK6190 Auto 3 Part Hematology Analyzer
Features:
* Throughput: 60T/H
* 8 inch touch screen
8 20 parameters + 3 histograms
* 2 reagents only
* 3 counting modes
* 100,000 sample results
* Support LIS and external printer
Technical Parameters:
|
Model |
BK-6390 |
||
|
Throughput |
60 tests/hr |
||
|
Assay Items |
22 parameters, 3 parts differential of WBC |
||
|
Measuring Principle |
Impedance for cell counting Cyanide-free method for HGB |
||
|
Parameters |
WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR |
||
|
Histograms |
HistogrWBC, RBC, PLT histogram |
||
|
Sample Volume |
Normal:10μL ;Predileted:20μL
|
||
|
Calibration |
Manual&auto calibration |
||
|
Counting Modes |
Venous, capilary, prediluted |
||
|
Printer |
Built-in thermal printer,USB to external printer(optional) |
||
|
Language |
English, Spanish, Italian, Portuguese, French etc |
||
|
Data Input |
8 inch touch screen, keyboard, mouse |
||
|
Output |
RS232 port, USB port, VGA port. LIS system avaliable |
||
|
Storage |
100,000 results with histogram |
||
|
Carry-over rate |
Parameter |
CV |
|
|
WBC |
≤ 2% |
||
|
RBC |
≤ 1% |
||
|
HGB |
≤ 2% |
||
|
PLT |
≤ 2% |
||
|
Background |
Parameter |
Background |
|
|
WBC |
≤ 0.2×109/L |
||
|
RBC |
≤ 0.02×1012/L |
||
|
HGB |
≤ 1 g/L |
||
|
HCT |
≤ 0.5% |
||
|
PLT |
≤ 10×109/L |
||
|
Precision
|
Parameter |
CV |
Measurement range |
|
WBC |
≤ 2.0% |
(4.0-15.0×109)/L |
|
|
RBC |
≤ 1.9% |
(3.5-6.0×1012)/L |
|
|
HGB |
≤ 1.9% |
(110.0-180.0g)/L |
|
|
MCV |
≤ 0.4% |
(80.0-110.0)fL |
|
|
PLT |
≤ 4.0% |
(100.0-500.0×109)/L |
|
|
Linearity |
Parameter |
Measurement range |
CV |
|
WBC |
(0-5.9×109)/L (6.0-99.9×109)/L |
(±0.3×109)/L ±5% |
|
|
RBC |
(0-0.99×1012)/L (1.0-9.99×1012)/L |
(±0.05×1012)/L ±5% |
|
|
HGB |
(0-99.0g)/L (100.0-300.0g)/L |
(±2.0g)/L ±2% |
|
|
PLT |
(0-99×109)/L 100-999×109)/L |
(±8.0×109)/L ±10% |
|
|
Power supply |
AC 100/220±10%,60/50Hz |
||
|
Package Size |
580*470*590mm |
||
|
Gross Weight |
26.6kg |
||
Established in 1999, owning more than 1000 employees and 20000 square meters.
the package : Bubble film +cotton+standard export wooden case.
the delivery : 7-15 days after the payment
Free offer trial video for your sample
Free training video with machine
Pre-sales service
24hours online to ensure quick response to customers' inquiry or online message.
Guide customers to choose the best suitable machine model.
Offer detailed specification and competitive prices.
Customization available for special specification products.
Sample testing support.
View our Factory.
After-sales service
Training how to install and use the machine.
Engineers available to service machinery overseas.
In time response to customers technical problems.
12-month warranty
Best service from Camille
FAQ for better and easy cooperation
1.How about the sample of Biobase product?
We could send you the samples but the freight and the sample are charged.
2.How about Biobase delivery time?
Within 7-15 workdays after receiving deposit.
3.How about Biobase validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant
4.What's thr shipping port?
FOB to QingDao Port,China(also can ship according to customers' request.
5.How about the package?
Bubble film +cotton+standard export wooden case.
