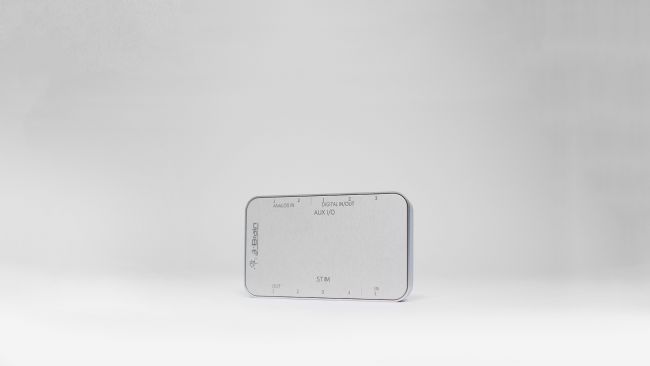

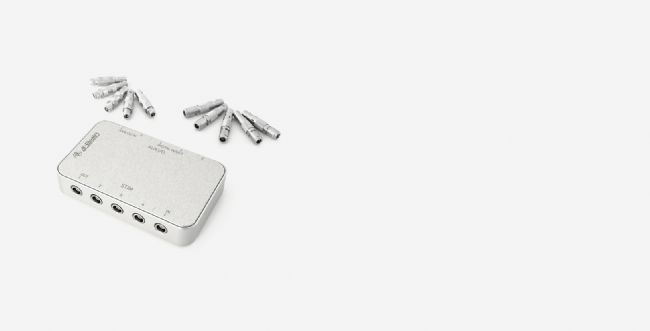

IO Connector Box
The external IO Connector Box facilitates the access to the BioCAM X and BioCAM DupleX HD-MEA channels and internal modules (like the stimulation module). It features:
4 output stimulation channels
1 input stimulation channel
3 digital In/Out lines
2 analog input lines

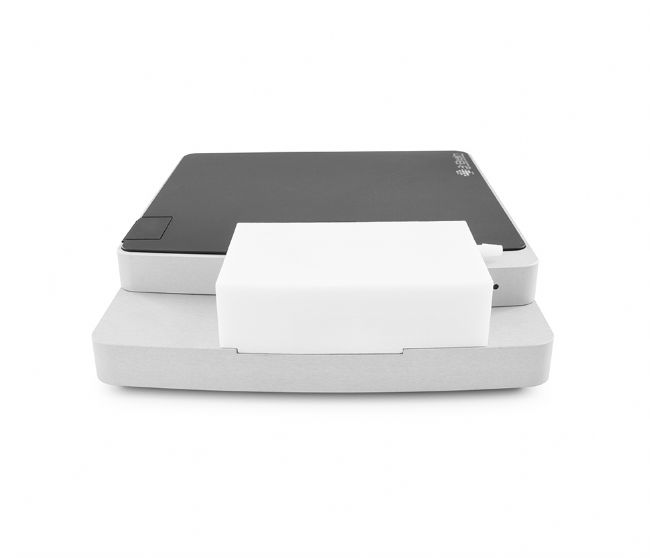

MIB: the mini-incubator box
Drawing from our years of experience with neuronal cell cultures, we created MIB, a mini-incubator box for our BioCAM X and BioCAM DupleX systems, to enable long-term recordings from neuronal cell cultures on microelectrode arrays (MEAs). MIB can be easily connected to the O²/CO² line, and the temperature is constantly monitored by both the BioCAM X and BioCAM DupleX's temp-control function.

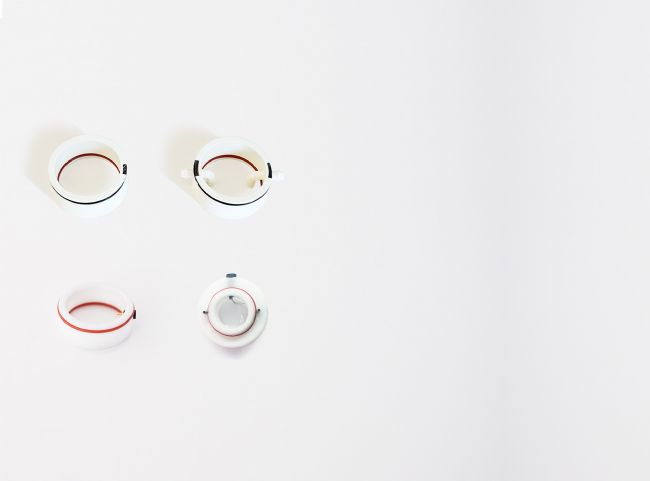

HD-MEA Caps for BioCAM DupleX
These HD-MEA Caps have a transparent membrane (FEP: fluorinated ethylene-propylene) stretched across the top. The membrane allows the diffusion of gases, but limits evaporation, thus reducing the need for a humidified atmosphere while also preventing culture contamination. Caps can be sterilized and are available with just the FEP membrane (left figure) or equipped with a perfusion inlet and outlet (right figure).
These HD-MEA Caps have been specifically designed for our HD-MEAs and BioCAM X. They are made of polytetrafluoroethylene (Teflon™) and have a transparent membrane (FEP: fluorinated ethylene-propylene) as in the case of the caps for the BioCAM DupleX. Caps can be sterilized and are available without (left figure) or with inlet/outlet for perfusion (right figure).
