Silicone tubing is the basic material upon any single use process is built. Its great overall performance and resistance to temperature, moist, ozone and steam and high biocompatibility make it the product of choice for all stages of bioprocessing, from drug formulation, upstream processing and all downstream’s critical steps from separation to final fill.

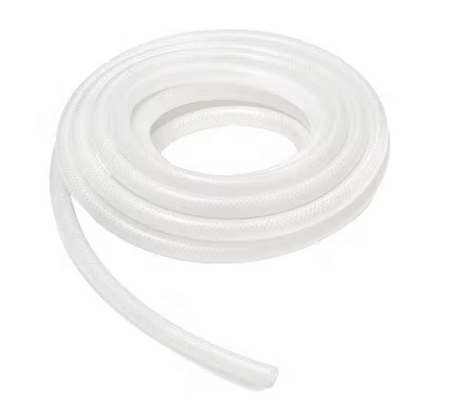

This product is braided using a fiberglass yarn.

This provides high pressure resistance and a maximum of 220˚C.

Customization

Hardness

60 Shore A

Tensile strength

> 10 N/mm2

Elongation

>200%

Tear strength

>20 kN/m

Density

1,17 g/cm³

Features

Outer Layer

Platinum cured silicone. Postcured to completely eliminate volatiles

Reinforcement

Reinforced with a single fiberglass braiding

Temperature

-60˚C / +220˚C (-76˚F / +428˚F)

Roll Length

Available in 25ft and 50ft

Laser Etched

Traceable with reference, lot number and ID/OD

Clean Room

Manufactured in ISO14644-1 Class 7

Smoothness

Reduces protein binding and biofilm formation

Animal Free

Animal derived component free

Radiostable

Gamma/eBeam sterilization available

Venair Group is an international leader in manufacturing silicone hoses and special pieces of silicone. We provide complete custom design services for all kinds of applications. We work with the most demanding industries such as the pharmaceutical, industrial and biotechnological.
