Product Description

Application

Real- time PCR is used for sensitive, specific detection and quantification of nucleic acid targets. We have developed powerful assay design algorithms, optimized qPCR regent, intuitive data analysis software, and flexible instrumentation to help harness the power of qPCR across a rich and diverse set of applications. Explore our robust solutions for your qPCR-based research.

Features

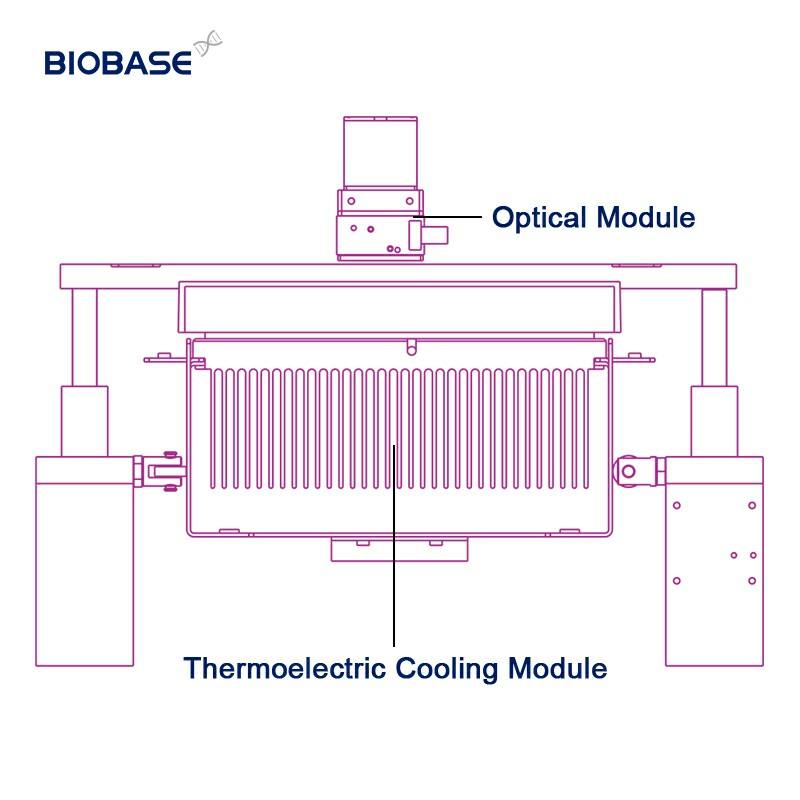

* Excellent temperature control performance of the instrument, the maximum temperature rise and fall 25.0ºC/s.

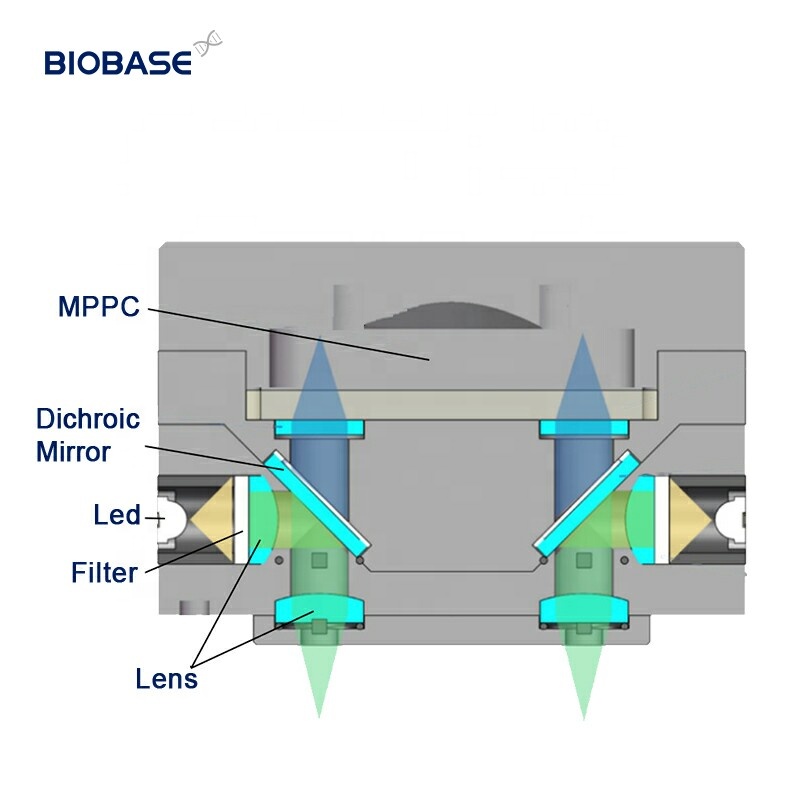

* No edge effect, no optical path correction, top excitation/detection, non-contact measurement.

*Fluorescence detection adopts MPPCsensor with high sensitivity.

*Long-life LED light source, stable emission wavelength, maintenance-free.*4-channel fluorescence detection, no cross interference between channels.

*User-friendly and fully functional software, flexible program setting, comprehensive analysis and reporting functions,all the parameters can be stored.

Parameter


			Product Name

			Fluorescence Quantitative PCR Detection System

			Model

			LEIA-X4

			Sample Capacity

			96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube (Transparent Cover)

			Reaction System

			10~50μl

			Dynamics Range

			1-1010 copies

			Channel

			4

			Emission Light

			LED

			Detector

			MPPC

			Detection Path

			F1

			F2

			F3

			F4

			Suitable Probe/Dye

			FAM/SYBR GREEN

			VIC/JOE/ HEX/TET

			ROX/TEXAS-RED

			Cy5

			Excitation Wavelength

			455~680nm

			Detection Wavelength

			510~730nm

			Fluorescence Detection Repeatability

			CV≤2%

			Fluorescence Detection Accuracy

			CV≤3%

			Fluorescence Detection Linearity

			r≥0.995

			Module Temp. Range

			4-99ºC(resolution:0.1ºC)

			Ramp Rate

			5.0ºC/s(max)

			Temp. Accuracy

			±0.3ºC

			Temp. Uniformity

			≤ ±0.3ºC

			Temp. Control Mode

			Block mode

			Gradient Temp. Range

			1-36ºC

			Hot-Lid Temp. Range

			100ºC, Automatic Hot-lid

			Scanning Mode

			Full plate scanning

			Programming

			Max 100 Segments for Each Program, Max 99 Cycles

			Operation Mode

			Continuous

			Scanning Time

			8.5s

			Special Function

			Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc.

			Operation System

			Microsoft: Windows10

			Power Supply

			220V,50/60HZ; 110V,60HZ

			Dimension(L*W*H) Mm

			375*490 *365

			Port Method

			USB Port

			Packing Size(L*W*H) Mm

			645*565 *605

			Gross Weight

			45

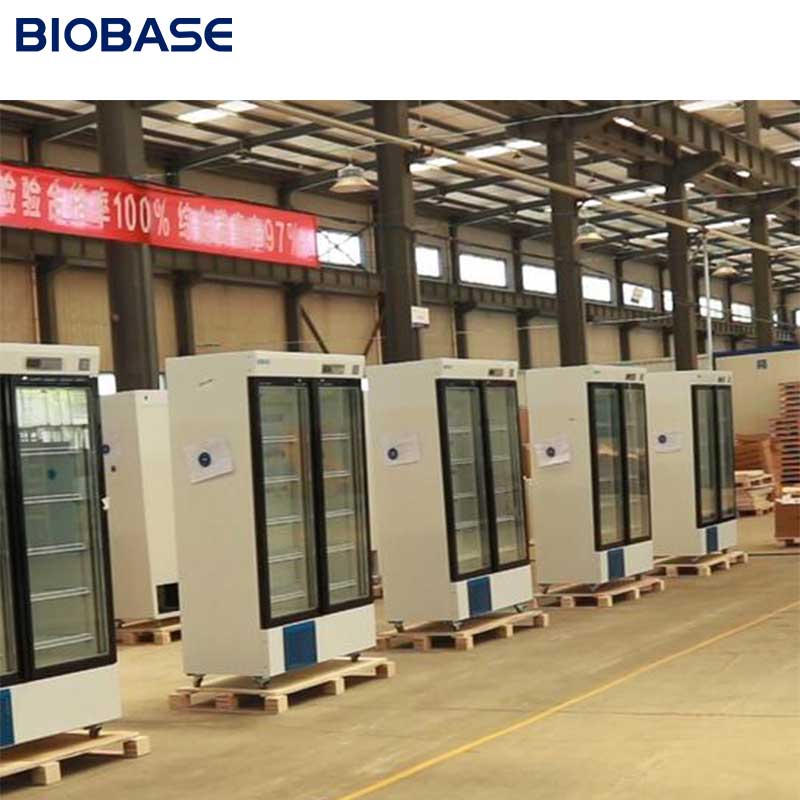

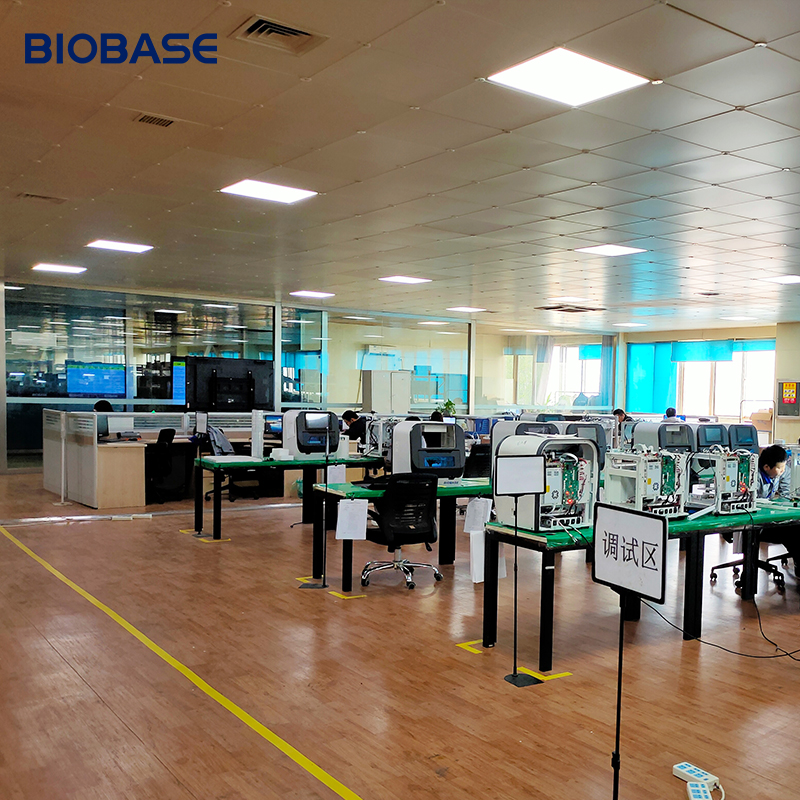

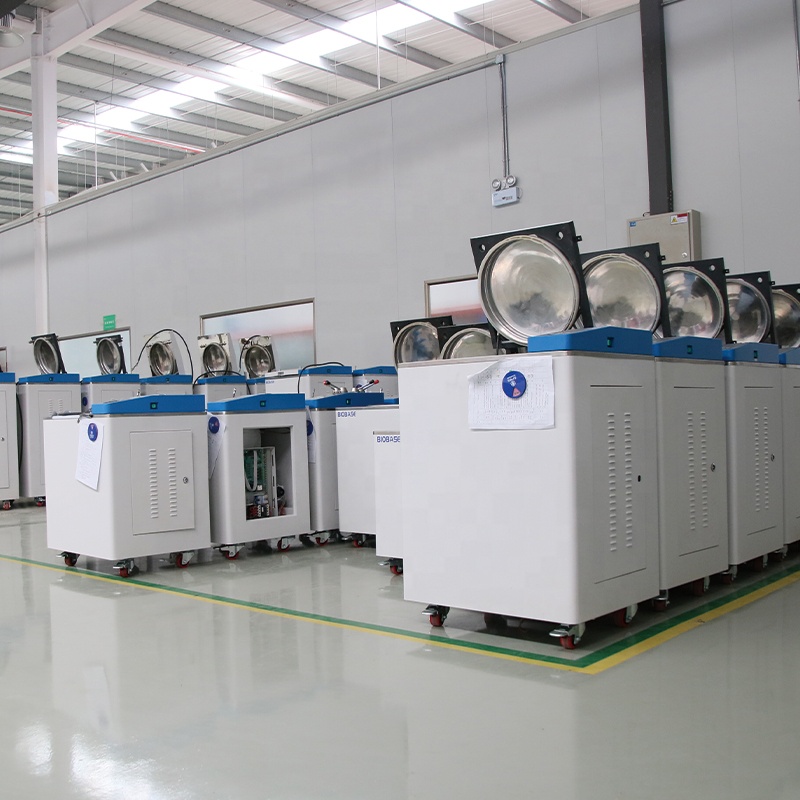

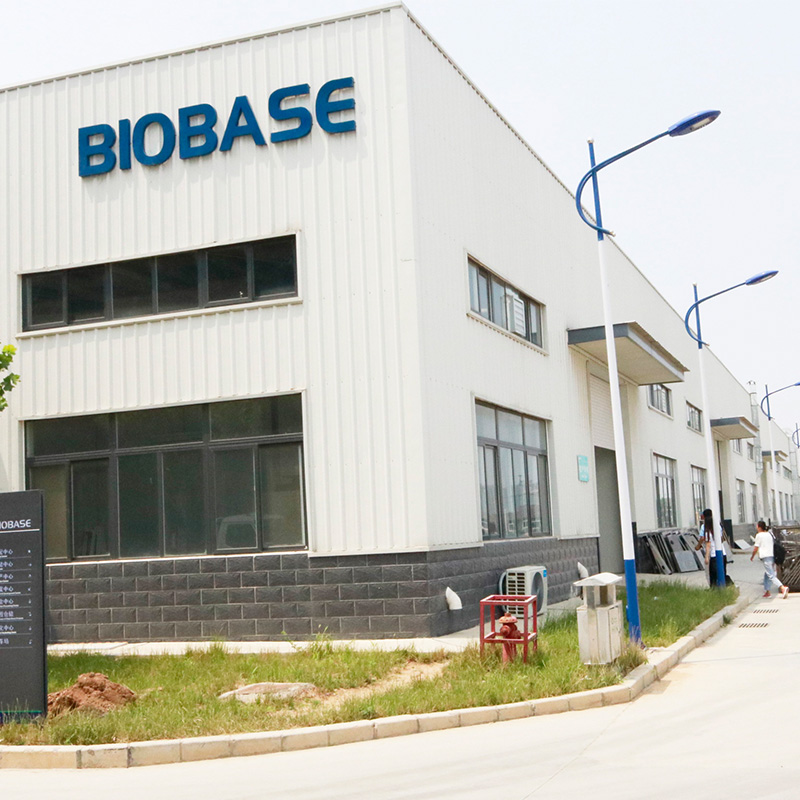

Factory

After Sales Service


Biobase Serve Team

Pre-sale service
- Offer detailed specification

- Provide competitive prices

- 24hours online

After-sale service

- Always online guide installation

- Update new products

Biobase
- Best Price and Good Quality
- 20 years of export products
- Many Factories

One-Stop Shopping

PCR diagnosis / Lab / Autoclave / Freezer / Clinical Analyzer etc One-stop shopping Station

We are Founded in 1999 and been through high and stable development for 20 years.We are manufacturer of laboratory and medical product . Autoclave, Biosafty cabinet, Fume Hood, Incubator,other laboratory and medical IVD equipment.International Market: North America, South America,Europe, Africa,Southeast Asia,Middle East.We have large after-sale team with professional engineers.

Product Name	Fluorescence Quantitative PCR Detection System
Model	LEIA-X4
Sample Capacity	96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube (Transparent Cover)
Reaction System	10~50μl
Dynamics Range	1-1010 copies
Channel	4
Emission Light	LED
Detector	MPPC
Detection Path	F1	F2	F3	F4
Suitable Probe/Dye	FAM/SYBR GREEN	VIC/JOE/ HEX/TET	ROX/TEXAS-RED	Cy5
Excitation Wavelength	455~680nm
Detection Wavelength	510~730nm
Fluorescence Detection Repeatability	CV≤2%
Fluorescence Detection Accuracy	CV≤3%
Fluorescence Detection Linearity	r≥0.995
Module Temp. Range	4-99ºC(resolution:0.1ºC)
Ramp Rate	5.0ºC/s(max)
Temp. Accuracy	±0.3ºC
Temp. Uniformity	≤ ±0.3ºC
Temp. Control Mode	Block mode
Gradient Temp. Range	1-36ºC
Hot-Lid Temp. Range	100ºC, Automatic Hot-lid
Scanning Mode	Full plate scanning
Programming	Max 100 Segments for Each Program, Max 99 Cycles
Operation Mode	Continuous
Scanning Time	8.5s
Special Function	Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc.
Operation System	Microsoft: Windows10
Power Supply	220V,50/60HZ; 110V,60HZ
Dimension(LWH) Mm	375490 365
Port Method	USB Port
Packing Size(LWH) Mm	645565 605
Gross Weight	45
