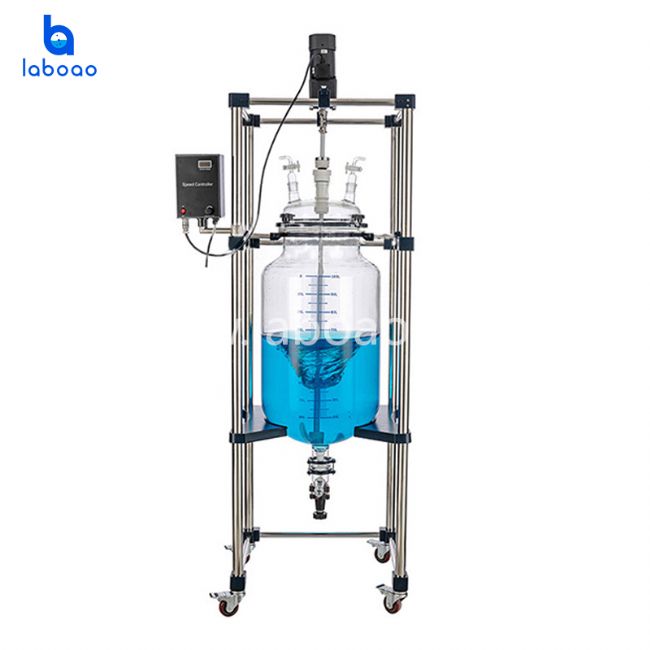

- 50L 100L Glass Liquid Separator
Extraction separator, Glass dispenser, medical lab automatic dispenser,
laboratory dispenser, lab high speed dispenser
liquid separator glass,glass separator liquid,large scale liquid separator,50l glass liquid-liquid separator
LFY-10, LFY-20, LFY-50, LFY-100
LABOAO
Any port in China
Plywood case package
According to the actual needs of the majority of biopharmaceutical development companies, the glass dispenser is an improved derivative product developed on the basis of the existing single-layer glass reactor. It is mainly used for liquid-liquid extraction and can also be used for reactions at room temperature.
Description
The glass separator (extraction separator) is used to mix various materials for chemical or physical reaction, and then separate and extract the newly generated materials according to the different specific gravity. This equipment can provide a fast and uniform reaction/collection effect under vacuum. According to the needs of use, this machine can also be used as a separate liquid separator or a conventional reactor.
Feature
1. The frame-type main body is made of aluminum alloy + stainless steel.
2. The whole set of glass is made of GG17 high borosilicate glass + PTFE discharge valve, discharge side without liquid.
3. Low-speed power-increasing motor, electronic stepless speed regulation, fine-tuning by twisting, digital display of speed, safe and stable, and can work continuously.
4. The stirring system adopts ceramic bearings and mechanical seals to prevent the stirring rod from being worn and chipped.
5. Crescent type stirring blade, 304 stainless steel + PTFE stirring blade; the stirring rod is made of 304 stainless steel, wrapped with PTFE tube.
6. There is a universal wheel with brake at the bottom of the machine, which can be moved as a whole and is easy to operate.
7. Fuse safety protection.
Specification
10L， 20L
| Model | LFY-10L | LFY-20L |
| Capacity | 10L ball type | 20L ball type |
| Voltage frequency | 220V/50Hz | |
| Motor Power | 90W 1/3 | |
| Rotating speed | 0-450rpm/min | |
| Vacuum | 0.098Mpa | |
| Kettle body | φ280mm four ports | |
| Stirring port | φ80mm flange mouth | |
| Feeding port | 34# standard port | |
| Decompression port | 34# standard port | |
| Lower discharge port | φ80mm flange mouth | |
| Mixer | φ17*600H（mm） exhibition 150mm | φ17*600H（mm） exhibition 190mm |
| Feeding valve | 34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm | |
| Pressure reducing valve | 34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm | |
| Discharge port | φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground | |
| The whole machine occupies space size | 530*440*1550mm | 530*440*1580mm |
| Machine net weight | 30KG | 33KG |
| Package Size | 1250*560*580mm Wooden box 0.4m³ | 1280*560*580mm Wooden box 0.42m³ |
| Package weight | 51KG | 54KG |
10L
| model | LFY-10L |
| capacity | 10L ball type |
| Voltage frequency | 220V/50Hz |
| Motor Power | 90W 1/3 |
| Rotating speed | 0-450rpm/min |
| Vacuum | 0.098Mpa |
| Kettle body | φ280mm four ports |
| Stirring port | φ80mm flange mouth |
| Feeding port | 34# standard port |
| Decompression port | 34# standard port |
| Lower discharge port | φ80mm flange mouth |
| mixer | φ17*600H（mm） exhibition 150mm |
| Feeding valve | 34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm |
| Pressure reducing valve | 34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm |
| Discharge port | φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground |
| The whole machine occupies space size | 530*440*1550mm |
| Machine net weight | 30KG |
| Package Size | 1250*560*580mm Wooden box 0.4m³ |
| Package weight | 51KG |
20L
| model | LFY-20L |
| capacity | 10L ball type |
| Voltage frequency | 220V/50Hz |
| Motor Power | 90W 1/3 |
| Rotating speed | 0-450rpm/min |
| Vacuum | 0.098Mpa |
| Kettle body | φ280mm four ports |
| Stirring port | φ80mm flange mouth |
| Feeding port | 34# standard port |
| Decompression port | 34# standard port |
| Lower discharge port | φ80mm flange mouth |
| mixer | φ17*600H（mm） exhibition 190mm |
| Feeding valve | 34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm |
| Pressure reducing valve | 34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm |
| Discharge port | φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground |
| The whole machine occupies space size | 530*440*1580mm |
| Machine net weight | 33KG |
| Package Size | 1280*560*580mm Wooden box 0.42m³ |
| Package weight | 54KG |
50L
| model | LFY-50L | |
| Capacity | 50L ball type | 50L cylinder type φ365mm inner length 576mm |
| Voltage frequency | 220V/50Hz | |
| Motor Power | 120W 1/3 | |
| Rotating speed | 0-450rpm/min | |
| Vacuum | 0.098Mpa | |
| Kettle body (spherical type) φ470mm four ports | Stirring port | φ80mm flange mouth |
| Feeding port | 34# standard port | |
| Decompression port | 34# standard port | |
| Lower discharge port | φ80mm flange mouth | |
| Kettle body (tube type) φ265mm three ports | Stirring port | φ50mm flange mouth |
| Feeding port | 34# standard port | |
| Multi-function port | 34# standard port | |
| Lower discharge port | φ80mm flange mouth | |
| mixer | φ17*900H(mm) Leaf spread 190mm | |
| Feeding valve | 34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm | |
| Pressure reducing valve | 34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm | |
| Discharge port | φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground | |
| The whole machine occupies space size | spherical | 720*600*1800mm |
| Barrel type | 650*720*1870mm | |
| Machine net weight | spherical | 41KG |
| Barrel type | 51KG | |
| Package Size | spherical | 1490*720760mm wooden box 0.82m³ |
| Barrel type | 1680*620*650mm wooden box 0.68m³ | |
| Package weight | spherical | 67KG |
| Barrel type | 82KG | |
100L
| Model | LFY-50L | LFY-100L |
| Capacity | 50L cylinder type φ365mm inner length 576mm | 100L cylinder type φ465mm inner length 696mm |
| Voltage frequency | 220V/50Hz | 220V/50Hz |
| Motor Power | 120W 1/3 | 200W 1/3 |
| Rotating speed | 0-450rpm/min | |
| Kettle body | φ470mm four ports | φ340mm four ports |
| Stirring port | φ80mm flange mouth | |
| Feeding port | 34# standard port | |
| Decompression port | 34# standard port | |
| Lower discharge port | φ80mm flange mouth | |
| Mixer | φ17*900H(mm) Leaf spread 190mm | φ17*1200H(mm) Leaf spread 240mm |
| Feeding valve | 34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm | |
| Pressure reducing valve | 34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm | |
| Discharge port | φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground | |
| The whole machine occupies space size | 720*600*1800mm | 750*800*2100mm |
| Machine net weight | 51KG | 67KG |
| Package Size | 1680*620*650mm wooden box 0.68m³ | 1920*720*760mm wooden box 1.06m³ |
| Package weight | 82KG | 115KG |
-
