- Portable PID adjustment 1200 C dry well type temperature calibrator
- Product Detail
- Company Profile
Product Description
DTG series portable intelligent dry block furnace, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 300° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.

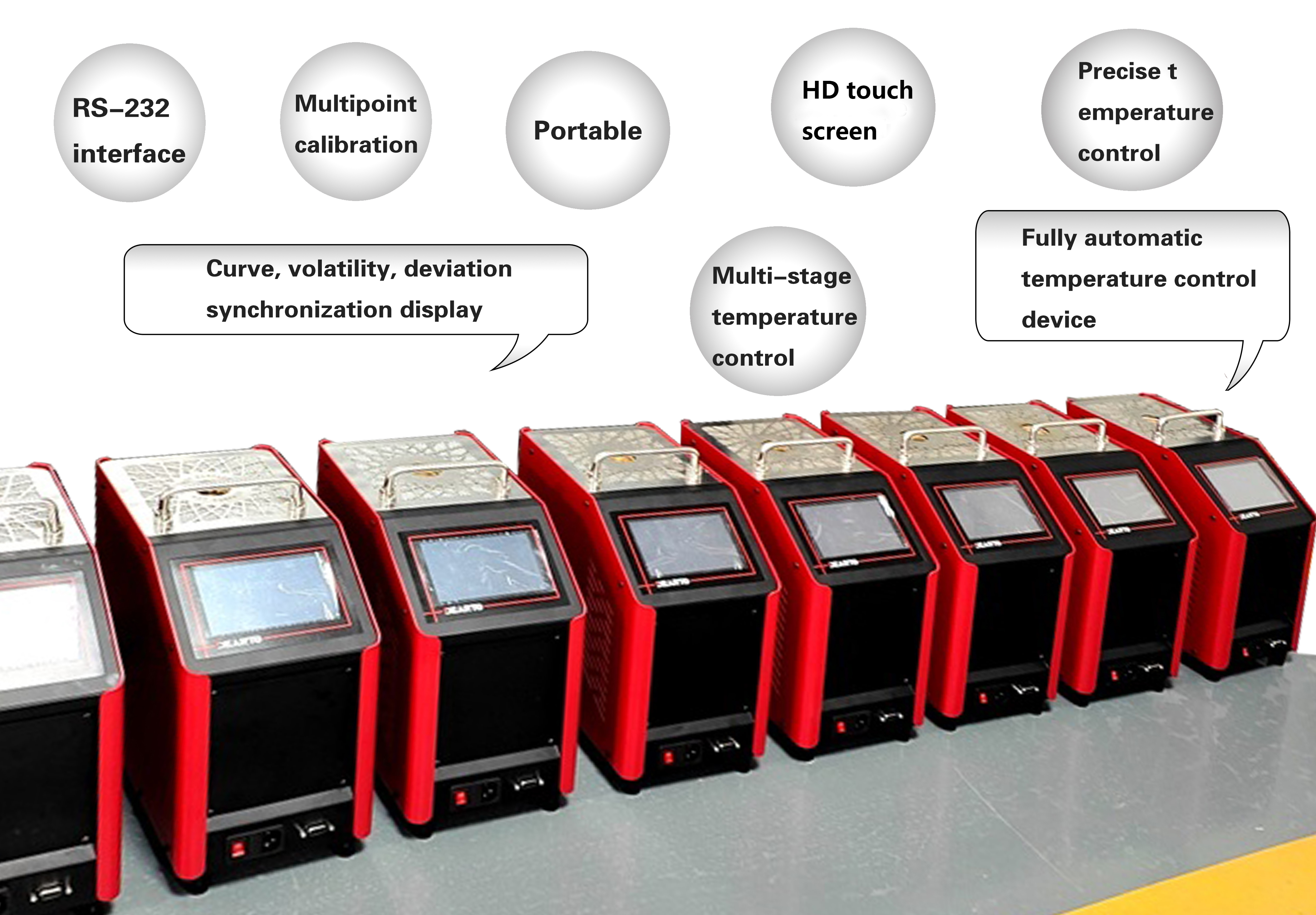

Functional characteristics
- Accurate temperature control and uniform temperature field
- Beautiful, portable and lightweight, convenient for on-site verification.
- Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
- Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
- Multi-point calibration interpolation calibration technology for more accurate temperature control
- RS-232 interface for data export
- Temperature curve, volatility, deviation synchronous display, intuitive reading
- Beautiful, portable and lightweight, convenient for on-site verification.
- Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
- Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
- Multi-point calibration interpolation calibration technology for more accurate temperature control
- RS-232 interface for data export
- Temperature curve, volatility, deviation synchronous display, intuitive reading

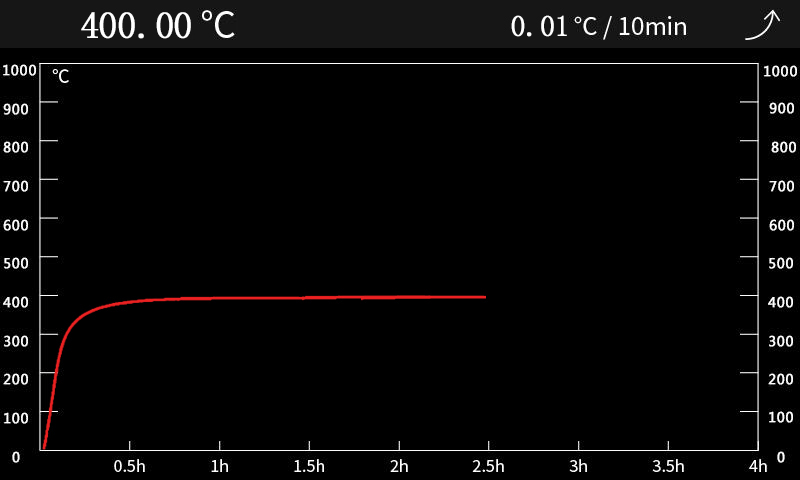

Operation interface
Product Paramenters
|
High temperature portable intelligent dry block furnace
|
|||
|
Model
|
DTG-1000G
|
DTG-1200G
|
|
|
Temperature range
|
300℃~1000℃
|
300℃~1200℃
|
|
|
Control style
|
Touch screen
|
||
|
Display resolution
|
0.1℃
|
||
|
Temperature fluctuation
|
0.2℃/min
|
||
|
Radial uniformity
|
≤±0.2℃
|
||
|
Axial uniformity
|
≤1.0℃ from bottom up to 30mm
|
||
|
Standard hole diameter(mm)
|
φ6.5,φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization) |
||
|
Deep well
|
200mm
|
||
|
Dimensions(mm)
|
310×165×360
|
||
|
P
|
1800W
|
||
|
Power supply
|
AC110/220V,60/50Hz
|
||
-
Tai’an Detu Automation Instrument Co.,Ltd is a temperature and humidity precision calibration instrument professional manufacturer,with strong research and development strength and professional technical team,as well as multiple patents and software copyrights.
