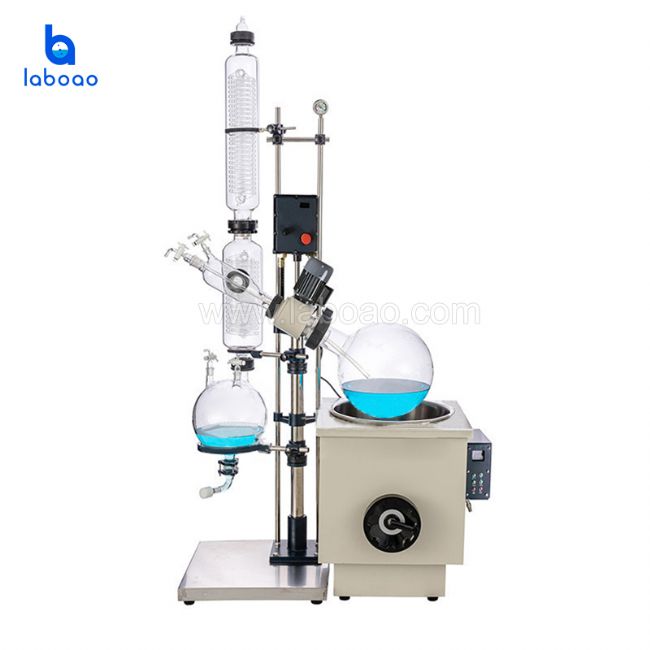

- Explosion-proof rotary evaporator EXRE 10L-50L
- Description
- Feature
- Specification
multi-function rotary evaporatorvacuum distillation rotary evaporatorrotary evaporator machinerotary evaporator for extractionindustrial rotary evaporatorrotary evaporator with chiller and vacuum pump
LRE 10L-50LEX
LABOAO
Any port in China
Plywood case package
The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
2. The main bracket uses cold plate anti-corrosion spray + aluminum alloy material, and has strong anti-corrosion characteristics. Pot bile adopts stainless steel quality, compact structure, durable, beautiful appearance;
3. The sealing system uses the polytetrafluoroethylene + fluororubber combination seal to maintain high vacuum;
4. Vacuum pressure gauge display real-time vacuum, pointer display;
5. The piston feeding valve sleeve piratifores lengthen tubes, which can be continuously fed to evaporation bottles in a vacuum state, which is convenient for customers.
6. Integrated condenser, upright double-layer snake-shaped coil to ensure high recovery;
7. Variable frequency speed, explosion-proof switch. The knob is fine-tuning, the number of revolutions is displayed;
8. Constant temperature bath temperature digital display, K-type sensor + stainless steel probe, fast transmission temperature
9. Bath pot hand wheel rises, easy to operate;
10. Electric explosion-proof, variable frequency speed aluminum shell explosion-proof, control plate aluminum shell explosion-proof, cable wear explosion pipe.
| Model | LRE -1002EX | LRE -2002EX | LRE -5002EX |
| Voltage frequency | 220V/50Hz | 220V+380V | |
| Total power | 3120W | 5120W | 8180W |
| Rotating motor power | EX120W | EX180W | |
| Heating power | 3000W | 5000W | 8000W |
| Vacuum | 0.098Mpa | ||
| Rotary flask capacity | 10L | 20L | 50L |
| Collect flask capacity | 5L | 10L | 20L |
| Rotating speed | 0~120rpm | ||
| Temperature range | RT-180℃ | ||
| Temperature control accuracy | ±1℃ | ||
| Bath pot lifting stroke | 180mm | ||
| Condenser size | Main condenser: φ120x620mm Sub-condenser: φ135x475mm |
Main condenser: φ130x700mm Sub-condenser: φ160x530mm |
Main condenser: φ160x835mm Sub-condenser: φ160x530mm |
| Condensation area | 0.51(0.33+0.18)㎡ | 0.95(0.46+0.49)㎡ | 1.44(0.95+0.49)㎡ |
| Feed valve | 34#standard port | 40#standard port | |
| Multi-function port | 19#standard port | ||
| Release valve | 24#standard port *2 | ||
| Discharge valve | Outer diameter 20mm, 200mm from the bottom plate | Outer diameter 20mm, 320mm from the bottom plate | |
| Vacuum pumping outlet | Outer diameterφ10mm | ||
| Condensate tube into and out circulation port | Outer diameterφ16mm | ||
| Bath size | φ350x220mm | φ450x260mm | φ550x320mm |
| Overall size(W*D*H) | 930x560x1910mm | 1000x600x2130mm | 1330x730x2340mm |
| Machine net weight | 83KG | 97KG | 128KG |
| Package Size | 1320x780x755mm | 1350x670x720mm + 680x680x790mm | 1420x820x720mm + 830x730x910mm |
| Package weight | 116KG | 143KG | 195KG |
-
