- Refrigerated / heating circulators for working temperature -30~180 deg C calibration bath
- Product Detail
- Company Profile
Products Description
Patented technology: The thermostatic bath has patented flameproof technology.
DTS-T series high and low temperature thermostatic bath technical index is consistent with the original ordinary thermostatic bath, in the temperature range to meet the different needs of customers, so that customers originally need two different constant temperature baths to complete the test, can be completed in a bath body, with rapid heating and cooling function, For customer verification pressure thermometer, bimetallic thermometer to provide backhaul measurement function,convenient for customers to use.

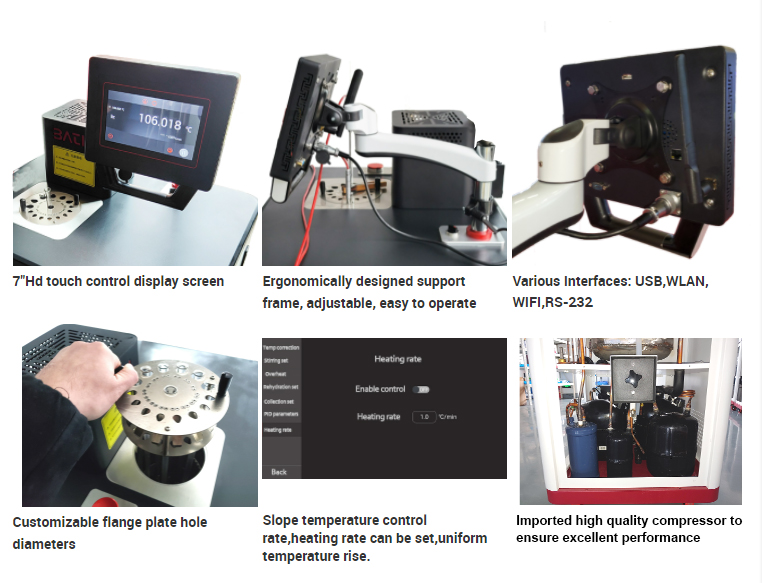

Product Features
1. The temperature field uniformity is good by using double bath side stirring mode.
2. Intelligent PID control, with excellent temperature field stability and uniformity;
3. High resolution display instrument, resolution 0.001℃.
4. Imported compressor, stable and reliable performance, optimized refrigeration system cooling speed faster.
5. Wide temperature range: no need to replace the working medium, a working medium can meet the (-30~180)℃ range of detection work.
6. RS232/RS484 communication interface selection, can achieve computer control.
7. Humanized design control is comfortable and convenient.
2. Intelligent PID control, with excellent temperature field stability and uniformity;
3. High resolution display instrument, resolution 0.001℃.
4. Imported compressor, stable and reliable performance, optimized refrigeration system cooling speed faster.
5. Wide temperature range: no need to replace the working medium, a working medium can meet the (-30~180)℃ range of detection work.
6. RS232/RS484 communication interface selection, can achieve computer control.
7. Humanized design control is comfortable and convenient.
Product Paramenters
|
Product name
|
High-low temperature thermostatic bath
|
Intelligent touch screen high-low temperature thermostatic bath
|
|||
|
Model
|
DTS-T300G
|
DTS-T150G
|
DTS-T180G
|
DTS-CT150G
|
DTS-CT180G
|
|
Temperature range
|
50~300℃
|
-20~150/ 180℃
|
-20/-30~180℃
|
-20~150℃
|
-20/-30~180℃
|
|
Resolution radio
|
0.001℃
|
||||
|
Working medium
|
Silicone oil
|
Dedicated oil
|
Dedicated oil
|
||
|
Horizontal uniformity
|
≤0.01℃
|
≤0.01℃
|
≤0.05℃
|
≤0.01℃
|
|
|
Vertical uniformity
|
≤0.01℃
|
≤0.02℃
|
≤0.05℃
|
≤0.01℃
|
|
|
Temp stability(30min)
|
±0.01℃
|
±0.01℃
|
±0.03℃
|
±0.01℃
|
|
|
Volume (L)
|
23
|
18
|
25
|
18
|
|
|
Working area size (mm)
|
Φ150x480
|
Φ130x480
|
6- Φ12x280
|
Φ130x480
|
|
-
Tai’an Detu Automation Instrument Co.,Ltd is a temperature and humidity precision calibration instrument professional manufacturer,with strong research and development strength and professional technical team,as well as multiple patents and software copyrights.
