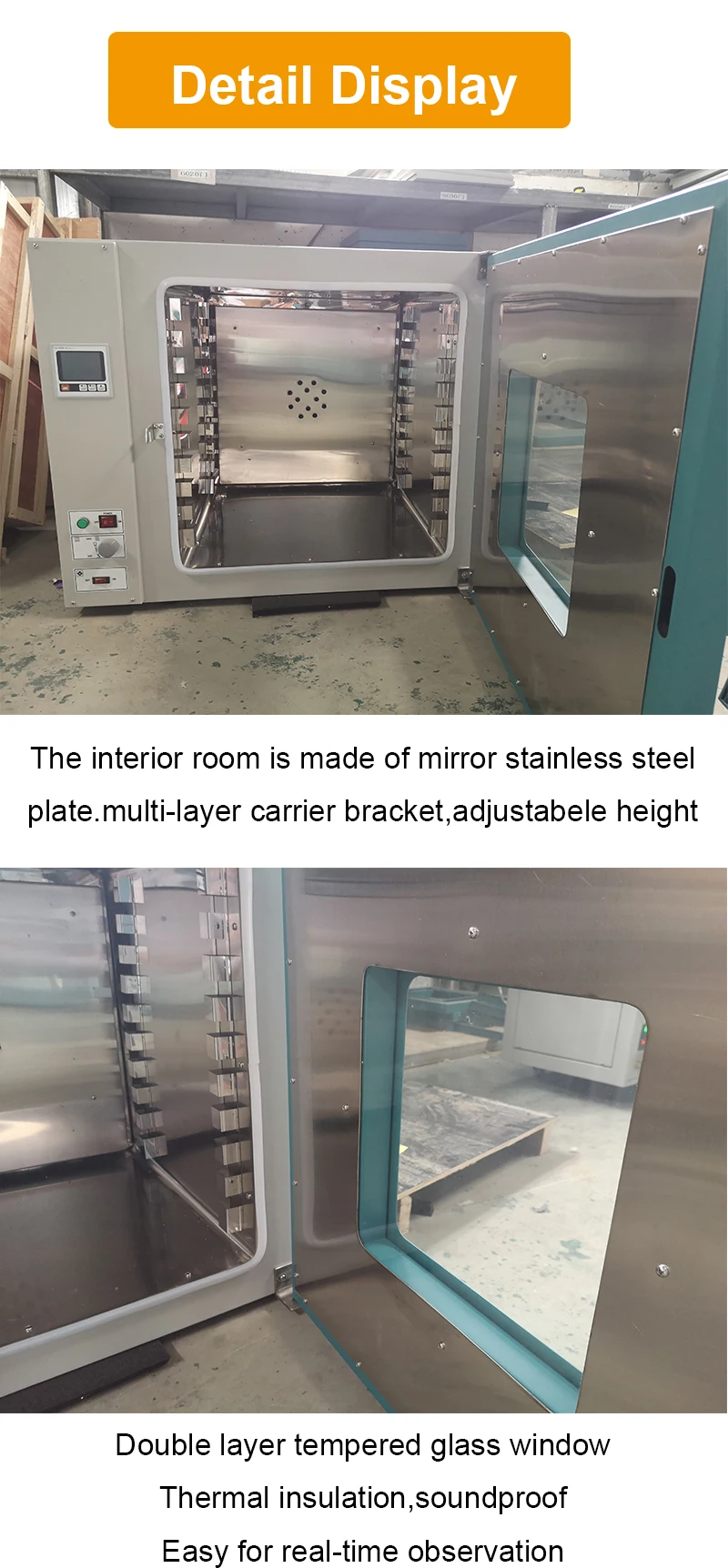

Laboratory Small Industrial High Temperature Blasting Drying Oven For Lab
Hot air blast drying oven is widely used in industrial and mining enterprises, laboratory and scientific research units for the purpose of drying, baking and wax melting, sterilization. Generally is divided into galvanized steel sheet and stainless steel liner.

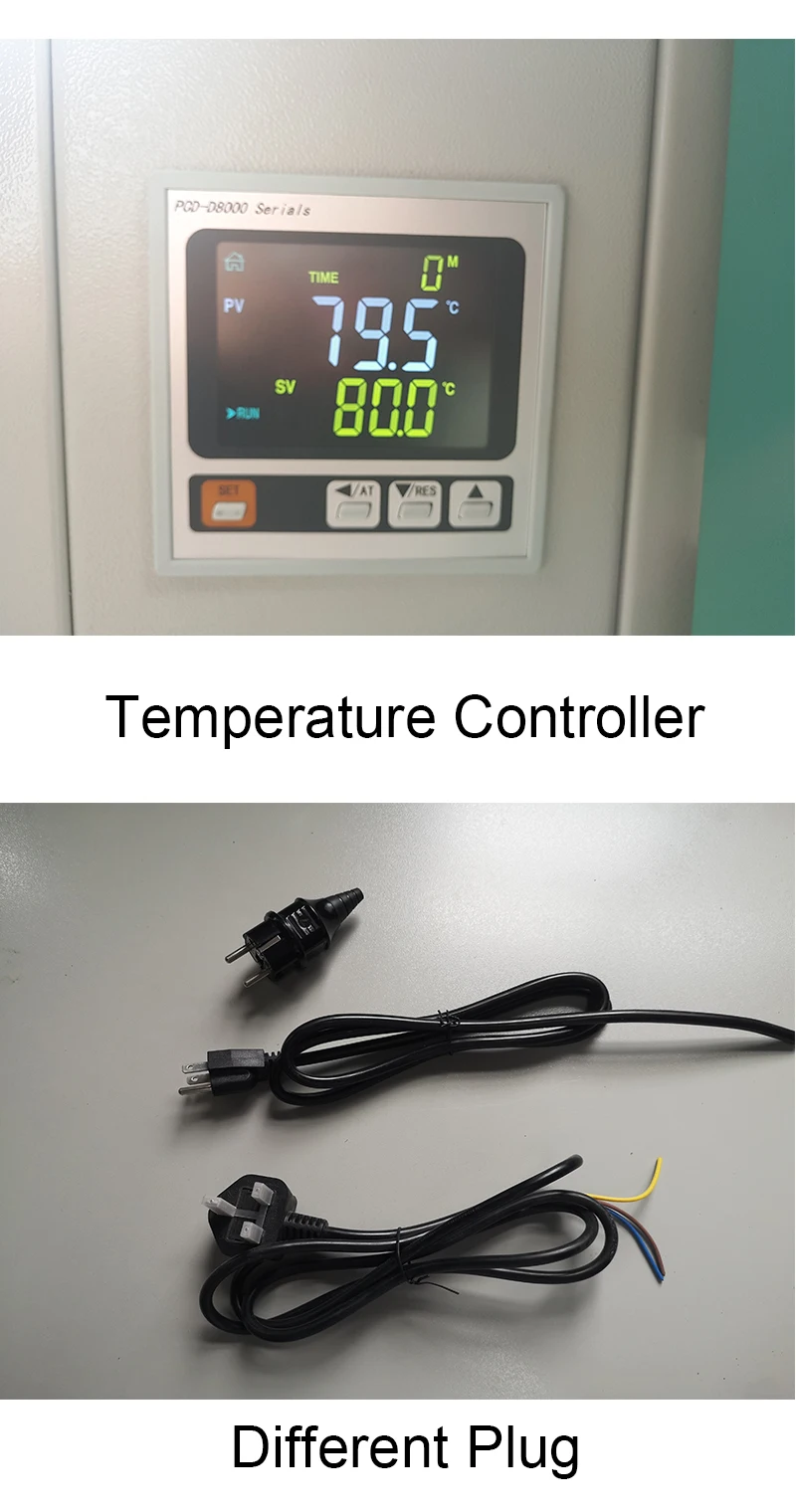

1. Automatic cut-off, time is running, calls the restoration, parameter memory , password-protected parameters, the temperature display correction.
2.High heat sensor and in response to environmental scanning micro-processing chips, constitute a high-precision, high temperature characteristics of intelligent.
3. All-round three-dimensional heat, fan forced circulation, high-precision temperature regulation, to ensure that the work of the indoor temperature has a good homogeneity.
4. Built-in temperature calibration, and can regulate the temperature of the small error.
5. Temperature deviation from the set temperature, the alarm automatically.
6. Out of control with auto power-off protection heater.
7. With memory function parameters can be set to avoid cumbersome.
8. Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.(Option)
9. Recorder and printer are options which can print or record setting parameters and trace variational curves of temperature.(Option)
| Model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A | DHG-9420A | DHG-9620A | DHG-9920A |
| Power Supply | 220V 50/60Hz | ||||||
| Shell Material | Spray-paint Anti-corrosion | ||||||
| Liner Material | 304 Stainless Steel | ||||||
| Temp. Range | RT+10~250°C | RT+10~300°C | |||||
| Temp. Stability | ±1.0°C | ||||||
| Temp. Analysis | 0.1°C | ||||||
| Working Temp. | +5~40°C | ||||||
| Input Power(W) | 850 | 1100 | 1550 | 2050 | 3500 | 4000 | 6000 |
| Chamber Capacity (L) | 40 | 72 | 151 | 216 | 393 | 672 | 960 |
| Inner Dimension (W*D*H, mm) | 340*340*340 | 400*400*450 | 550*500*550 | 600*600*600 | 750*750*700 | 840*600*1335 |
1000*600 *1600 |
| Overall Dimension (W*D*H, mm) | 630*600*500 | 680*690*630 | 830*800*720 | 900*870*840 | 1050*950*920 | 980*800*1710 |
1140*800 *2150 |
| Shelves (Pcs) | 1 | 2 | 3 | 4 | 5 | ||
| Time Range | 1~9999 min | ||||||
| Optional Configuration | Explosion-proof | ||||||
Working principle
When the materia is heated by the hot air in the drying chamber, the water will be turned into vapor and mixed with the hot air. The water can be also taken out of the box to dry materials through convection current driven by the fan, and the letout of vapor through the exhaust hole while the air intake hole is sucked into the air outside the box through the continuous exchange of indoor and outdoor air. The amount of air exchange inside and outside the tank can be adjusted by changing the size of the pores.
1. It is applicable to such test as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes.
2. Used for drying,baking wax-melting and sterilization for industrial in mining enterprises, laboratories,research units,etc.
3. It is applicable for drying, cure, melting and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
Please kindly contact us if need further info:
Skype:kevinzhang696
Mobile(whatsapp):+8618615696905
Email: zld698@163.com
-
Shandong Saikesaisi Hydrogen Energy CO., Ltd. is a high-tech and strong innovation team. She has being engaged in producing PEM/SPE Hydrogen Generator from 1992. The chief technical expert is the first one developing PEM/SPE technology in China who has developed Four generation hydrogen generators and some have won the patens and fill in the vacancy in Chinese technology field.
The company choose SPE-Solid Polymer Electrolyte positive ion(proton) exchange membrane to electrolyze pure water which replaces traditional alkali liquor hydrogen production. This technology has won BECIA golden medal and certificate of patent.
Because of good quality, some products have got CE certification(No.E/EC13840511537). Now this company can supply the following products:
1.QL Series Hydrogen Generators (0-34000 ml/min).
2.SHC Series Hydrogen Generators(0-500 ml/min).
3.QL Series Pure Air Generator(0-300 l/min).
4.QL Series Nitrogen Generator(0-500 l/min).
5.QL Series Nitrogen and Air Generator(Nitrogen:0-300 ml/min, Air:0-1000 ml/min), Nitrogen, Hydrogen and Air Generator(Nitrogen:0-300 ml/min, Hydrogen:0-300 ml/min and Air:0-1000 ml/min).
6. Other customized generator and Accessory parts.
