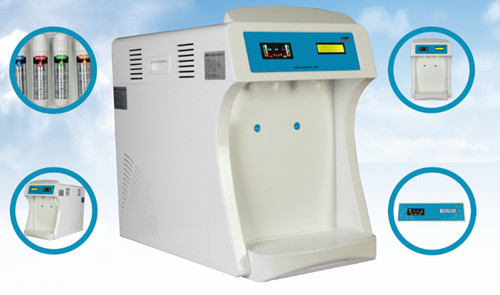

Water purification system
Water purification system
Place of Origin:
China
Brand:
KWF
Model:
WP-15L
Price:
Hits:
207
Updated:
5/20/2021
  • Product Detail
  • Company Profile


    Main functions and characteristics
    The chassis is made of sanitary ABS material, high strength all engineering plastic chassis, ergonomic design, beautiful appearance, prevent corrosion and rust, ensure collective cleanliness, in accordance with GLP specifications.
    Unique 4 door design, easy to observe and easy to get water.
    Pretreatment, RO membrane and other consumables are clamped, and the filter element can be loaded and unloaded by left and right rotation. The filter element can be safely and conveniently replaced without professional training.
    Powerful pretreatment components, including a variety of different role of filter elements, effectively remove particles from tap water, free chlorine and colloids, protect the RO membrane and extend life
    The super purification component and control part adopt independent modular structure, and the system maintenance is more convenient.
    The pipe joints are NSF certified to minimize the TOC precipitation and ensure the highest pure water quality.
    Automatic pressure sensor and microcomputer control work to achieve automatic manufacture of pure water, water shortage stop alarm, automatic shutdown
    Built-in independent Mini TOC total organic carbon online measurement module, equipped with independent color display screen, real-time monitoring of ultra-pure water TOC (selection)
    Ultra pure water circulation function can be freely activated and closed to ensure low bacterial contamination level of the system.
    The brand new super purification component of the top resin ensures the production of water up to 18.2 M -cm and the minimum TOC precipitation.
    High-energy ultra-long life 254-185 dual-wavelength UV lamp, effective sterilization, reduce TOC, enhance the scope of application of the system
    MWCO5000DUF ultrafiltration module can effectively remove endotoxin from heat source, which can be used for precise cell culture and IVF.
    Double terminal sterilization filter, accuracy: (0.45+0.1) um, ensure terminal water absolutely sterile.



    WP series ultra water purification system(Inlet: Tap water)
    Specification Standard Eliminating endotoxin Low TOC Comprehensive
    Model standard WP-15L WP-15L  UF WP-15L  UV WP-15L  UVF
    Large flow WP-30L WP-30L  UF WP-30L  UV WP-30L  UVF
    Flow procedure PF+AC+RO+DI +DMF    PF+AC+RO+DI+UF+DMF  PF+AC+RO+UV+DI+DMF PF+AC+RO+UV+DI+UF+DMF
    Inlet water requirement Tap water:TDS<200,5-40℃,1.0~3.5Kg/cm2,(when TDS>200,suggest to match outside softening tube)
    Water Quality Desalination Nearly 100%
    Resistivity 18.2 MΩ-cm   @25℃
    TOC ppb <10ppb <3ppb
    Endotoxin —— <0.001 Eu/ml —— <0.001 Eu/ml
    Virus  cfu/ml  < 1cfu/ml
    Particle >0.22μm < 1/ml
    Water outlet 2: RO water ;Ultra pure water
    Digital water monitor Automatic control LED display screen for water  +LCD with back light
    Inlet water requirement Tap water:TDS<200,5-40℃,1.0~3.5Kg/cm2
    Output(25℃) 15 L/H*  30 L/H*
    Instantaneous output L/min 1.5 L/min (with pressure tank) (Less output with UF/UV cartridge)
    External dimension / Weight H×W×D: 59×50×45 cm/ about 20 kg
    Powder 100-220V,50HZ/ standard 《75W. Large flow《150W

    WP series ultra water purification system(Inlet: Distilled water)


    Specification Standard Eliminating endotoxin Low TOC Comprehensive
    Model standard WP-D 15L WP-D 15L  UF WP-D 15L  UV WP-D 15L  UVF
    Large flow WP-D 30L WP-D 30L  UF WP-D 30L  UV WP-D 30L  UVF
    Flow procedure AC +DI +DMF AC +DI+UF+DMF AC +UV+DI+DMF AC +UV+DI+UF+DMF
    Inlet water Ro water, distilled water, deionization water
    Water
    Quality
    Resistivity 18.2 MΩ-cm   @25℃
    Heavy metal iron <0.1ppb
    TOC ppb <10ppb <3ppb
    Endotoxin —— <0.001Eu/ml —— <0.001Eu/ml
    Virus  cfu/ml  < 1cfu/ml
    Particle >0.22μm < 1/ml
    Instantaneous output L/min 1.5 L/min (with pressure tank) (Less output with UF/UV cartridge)
    Water outlet 2:  highpurity water  ;Ultra pure water
    Digital water monitor Automatic control LED display screen for water +LCD with back light
    Output(25℃) 1.5-2.0 L/min (with pressure tank) (Less output with UF/UV cartridge)
    External dimension / Weight H×W×D: 59×50×45 cm/ about 20 kg
    ﹡Inlet water :TDS200ppm, 25℃, 50psi and 15% recovery rate.
    *The quality of inlet water will effect output’s and cartridge’s life.
    AC:Active carbon DI:Ion exchange  UV:Ultraviolet(Double wavelength:254、185nm)UF:Ultrafitration DMF:Double membrane filtration
