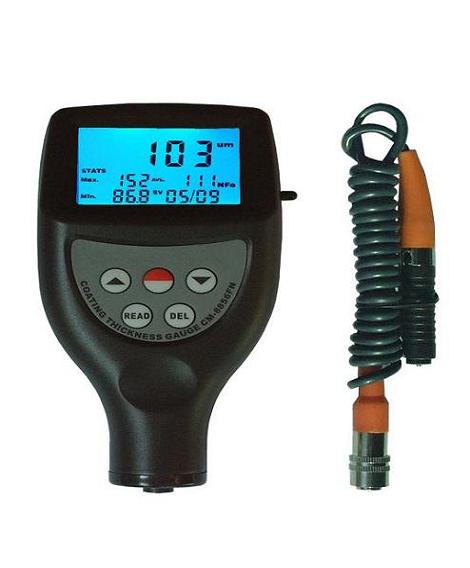

Model:CM8856
Application
It meets the standards of both ISO2178and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
SPECIFICATIONS
Display: 4 digits LCD, backlit
Min.radius workpiece: F: Convex1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Measuring range:0-1250um/0-50mil
Min. measuring area: 6mm
Min.Sample thickness : 0.3mm
Resolution: 0.1/1
Accuracy: ±1-3%n or ±2.5um or 0.1mil
(Whichever is the greater)
Bttery Indicator: Low batter indicator.
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50℃ .
Humidity <95% .
Size: 126x65x35 mm; 5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)
Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories: RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
