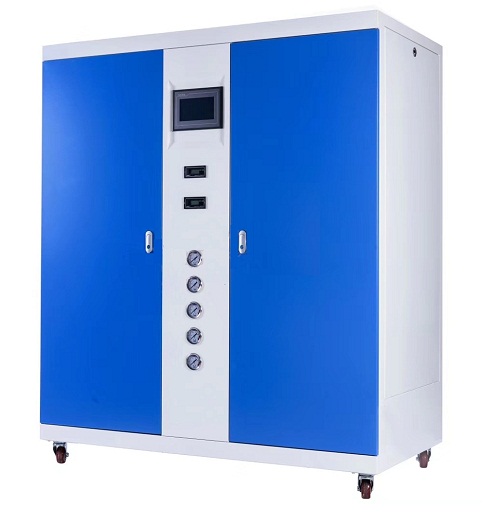

Q-Center-RO for Medical Device and Equipment Rinsing
System Features:
1. Automatic run, boot self-check, under pressure protection, automatic shutdown for hyper pressure or water in tank full, real-time monitoring of water quality and display on LCD screen
2. The system is configured with Cortex-A8 processor, seven inch man-machine interface and microcomputer control, real-time animation simulation display for the whole process. System has function of parameter modification, data storage and printing.
3. User login account and password can be added and modified to prevent unauthorized operation and data change.
4. Cumulative time and current time of system running is displayed. The system has function of timing starting up and shut down.
5. System fault alarm and consumables replacement alarm can be real-time displayed.
6. Automatic flushing and internal circulation function of the system prolong life time of RO membrane.
7. The imported and domestic top brand accessories are used in the system to ensure stable running of system and guarantee water quality.
8. More functions can be upgraded in the system such as remote monitoring function realizing remote operation, animation simulation real-time monitoring, voice control alarm and so on.
9. The remote full-automatic display, operation and control can be realized by adopting the technologies of PLC, LCD touchable screen, DCS and camera monitoring.
|
Model Code
|
Q-Center-RO
|
Q-Center-2RO
|
|
Purification Methods
|
Single RO
|
2 stage RO
|
|
Productive Water Volume
|
300/500/1000/1500/2000 L/H
|
|
Feed Water Conditions
|
Municipal Tap Water, Temperature: 5-45℃, Pressure: 0.2-0.4 Mpa
|
|
Outlet Water Quality
|
RO Pure Water
|
|
Conductivity of Pure Water
|
≤15μS/cm
|
≤5μS/cm
|
|
Bacterial Removal Rate
|
≥ 99.9%
|
