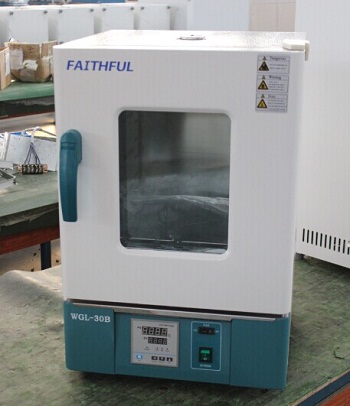

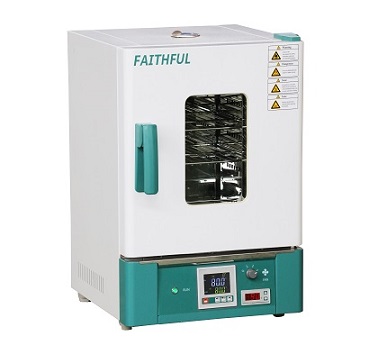

WGLL-30BE Forced air drying oven,FAITHFUL_specification/price/image

Product Detail
Company Profile

Product characteristic:

1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.

2. PID controller, with over-temperature protection function.

3. With fan switch,LED digital display,high temperature blast motor.

4.New anti-hot handle

WGLL-BE series have the following characteristics other than the above functions

1. LCD temperature controller. SSR to make sure the safety

2. 4 grades speed fan, adjustable for different requirements.

3. Over-temperature protection system.

4. Independent temperature limiter.

Model		WGL- 30B	WGL- 45B	WGL- 65B	WGL- 85B	WGL- 125B	WGL- 230B	WGL- 625B
Model		WGLL- 30BE	WGLL- 45BE	WGLL- 65BE	WGLL- 85BE	WGLL- 125BE	WGLL- 230BE	WGLL- 625BE
Cycle Mode		Forced convection
Function	Temp. Range	RT+10-300℃
	Temp. Range	RT+10-300℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±2.5%
Structure	Inner Chamber	Mirror Stainless Steel
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	High quality rock wool board(with CE)
	Heater	Stainless steel heater
	Power rating	0.8kW	1.2kW	1.6kW	2.0kW	2.3kW	3.0kW	5.0kW
	Exhaust hole	φ28mmtop(with function of test hole)					Rear exhaust	Top double exhaust
Controller	Temp. control mode	Two temperature section PID intelligent
	Temp. setting mode	Touch button setting
	Temp. display mode	B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row
	Temp. display mode	BE model: Measuring temperature display on upper LCD screen， setting temperature display on the lower row
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop.
	Additional function	B model: Sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory
	Additional function	BE model: High precision digital independent temperature limiter, 3- grade adjustable speed fan (230BE and 625BE without fan speed adjustor),sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory
	Sensor	pt100
Specification	Inner Chamber size (WLH)(mm)	310310 310	350350 350	400360 450	450420 450	500450 550	600500 750	660760 1250
	Exterior size (WLH)(mm)	450500 690	490540 730	540550 830	590610 830	640640 930	730680 1250	890925 1830
	Packing size (WLH)(mm)	550585 845	590625 885	640635 985	690695 985	740725 1085	86079 01400	100010 802000
	Volume	30L	45L	65L	85L	125L	230L	625L
	Shelf number	6	7	9	8	13	17	7
	Load per rack	15kg
	Shelf space	35mm						150mm
	Power rating (50/60HZ)	AC220V/ 3.6A	AC220V/ 5.5A	AC220V/ 7.2A	AC220V/ 9.0A	AC220V/ 10.5A	AC220V/ 13.6A	AC380V/ 7.6A
	NW/GW (kg）	33/37	37/43	44/49	50/56	60/66	94/120	120/160
Accessory	Shelf	2
Accessory	Shelf frame	4
optional accessories		B model: Shelf; BE model: Shelf,RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage

We could offer you plenty of lab instruments with good quality and best price, such as Incubator, Drying Oven, Heating Mantle, Magnetic Stirrer, Vortex Mixer, Water Still, Water Baths, Spectrophometer and Laminar Flow Cabinets and etc.
