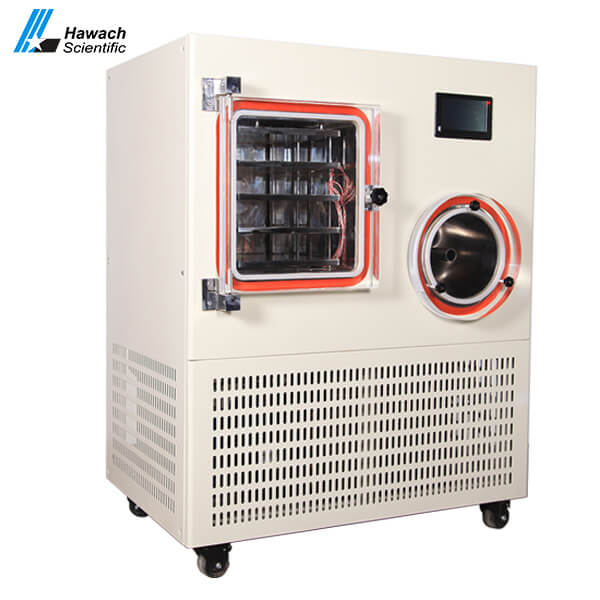

Hawach -60°C tray freeze dryer is an affordable industrial scale freeze dryer with electric heating function and LCD display. This lyophilizer for sale is the only desktop dryer with electric heating function.
laboratory lyophilizer price
Features of Hawach’s -60°C tray freeze dryer
1. User-friendly and affordable freeze dryer.
2. Fully closed compressor, reliable and efficient with little noise.
3. Large-cold-trap tray freeze dryer, pre-freezing available;
4. Stainless steel cold trap without exposed coil condenser, which is anti-corrosion and easy to clean.
5. Patented honeycomb duct to accelerate the drying process.
6. Industrial scale freeze dryer with electronic defrosting function to dry the cold trap.
7. Transparent drying room to allow clear observation and instant adjustment.
10. True color operation panel to record figures and curve during the drying process,
11. Lyophilizer for sale, of which the control system has 36 freeze-drying curve schemes. Each of the schemes contains 40 sections of temperature control settings, which can realize the process recording of various materials, and can be extracted and set for the next drying.
12. Affordable freeze dryer with 36V silicone rubber heating separator to ensure a more stable rise in temperature.
table top freeze dryer
13. Lyophilizer for sale, the heating tray has over-temperature protection function, and the compressor has delay protection function.
14. The tray inside the drying chamber can be moved up and down to facilitate stoppering after freeze-drying.
15. Original properties of the dried materials can be maintained since the microorganisms cannot grow and enzymes function cannot be performed during the drying process.
16. Industrial scale freeze dryer that can remove 95-99% water of the item, which guarantees long time storage after drying.
17. Affordable freeze dryer with adjustable and controllable tray temperature, which can be used for freeze-drying process exploration, pilot scale testing, and trial production.
18. Optional: temperature-control tray, vacuum degree adjustment, other vacuum pumps, inflation valves, eutectic point testing, dual condensers (-80°C), and T-type shelf freeze dry machine.
Working principle of Hawach’s -60°C tray freeze dryer
Freeze-drying is a method of freezing a water-containing substance in advance into a solid state, and then sublimating the moisture in the vacuum chamber from the solid state to gas state to remove the moisture and preserve the substance. The original chemical and biological characteristics of the items obtained by this drying method are basically unchanged, and it is easy to store for a long time. After adding water, it can return to the form before lyophilization and can maintain its original biochemical characteristics.
Parameters of Hawach’s -60°C tray freeze dryer
| Model |
Unit |
LFD60EH-18A |
LFD60EH-18C |
LFD60EH-18B |
LFD60EH-18D |
| Specification |
Standard |
8-bottled |
Top-press |
8-bottled top-press |
| Freeze-Drying Area |
㎡ |
0.18/0.27 |
0.09 |
| Cold Trap Temperature |
°C |
＜ -60 (no-loading), optional |
| Vacuum Degree |
Pa |
≤ 5 (no-loading) |
| Water-Capture Capability |
kg/24h |
6 |
| Tray Dimension |
cm |
φ24*4/6 layer |
φ20*3 layer |
| Total Power |
w |
2100 |
| Weight |
kg |
105 |
| Dimension (-56°C ) |
cm |
63×58×(97+46) drying room |
| Bulk Capacity (thickness 10mm) |
L |
1.8/2.7 |
2/3 |
1 |
1.2 |
| Vial Loading Number |
pcs |
Ф12mm*1320
Ф16mm*740
Ф22mm*360
|
Ф12mm*690
Ф16mm*360
Ф22mm*195
|
