Flow range:0.0001-720 ml.min, speed range: 0.1-150 rpm. High quality stepper motor drive, digital display, has basic functions such an reversible direction, start/stop, full speed (fast cleaning, empty), and speed-variable. Easy dispensing function can realize the repeat timing quantitative dispensing. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC
Function and Feature
• Four-figure digital LED indicator displays working speed
• LF-LED-OS software system
• The LED indicator displays the reversible direction, internal, external control, foot switch
working mode
• The button is combined with the knob for operation.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power-down
memory)
• Easy dispensing function, it realizes the repeat timing quantitative dispensing
• Streamlined plastic housing design for driver, simple and fashionable
• Large torque output, can drive multi-channels and various types of pump heads.
• Internal double-deck isolation structure, circuit board with conformal coating makes it
dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power
environment
• External high-low electrical level controls the star/stop, reversible direction and easy
dispensing function, optically coupled isolator, external analog adjusts the rotate speed
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• External foot switch can control start-stop or time dispensing can control start-stop and
realize simple dispensing filling function

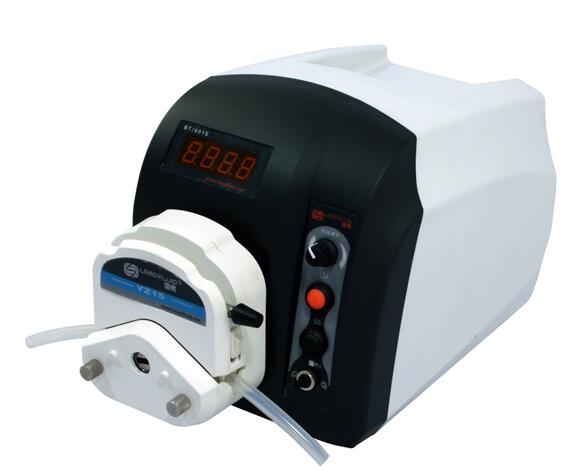

BT101S Applicable Pump Heads
DG, DT10-18,DT10-28,YZ15,YZ25,YT15,YT25
