centrifuge for beer yeast bread yeast,FUYI_specification/price/image

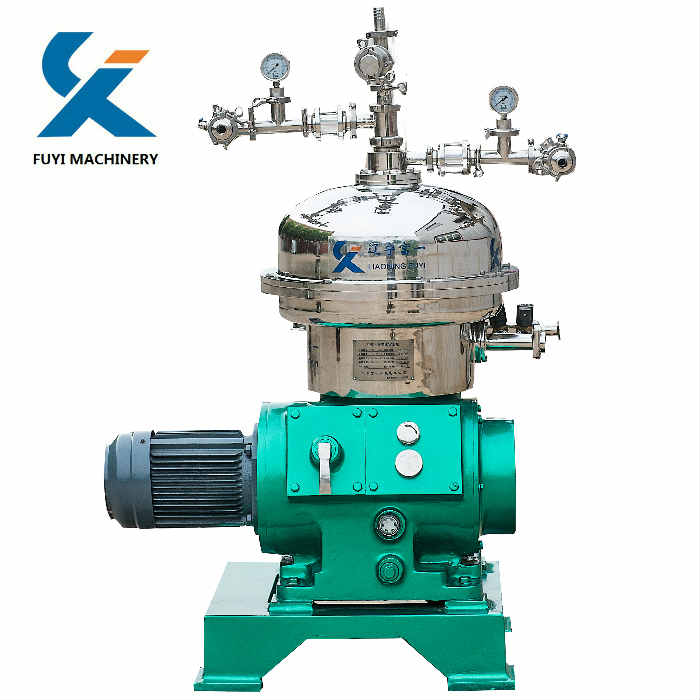

The DHC type disc centrifuge is 2 phase solid-liquid separation machine

The DHY type disc centrifuge is 3 phase solid-liquid-liquid separation machine

DHC type disc centrifuge(customized)

DHY type disc centrifuge

FUYI Disc centrifuge is a centrifugal separator which can separate solid matter from two kinds of different density liquids on a continuous basis and also to separate two liquids simultaneously. By reducing process cycle time and labor requirements, these separators offer high cost efficiency in liquid clarification and reclamation, solid-liquid separation and its classification, recovery and thickening of solids and in other such processes.Application:

Feature:

• Full automation possible with PLC automatic control panel.

• Centrifugal separation requiring no filter media.

• High reliability drive train system backed by delivery of over 1,000 units a year.

• Bowl design with superior separation performance and with good response to discharge loads.

• Pilot valve regulates total/partial discharge of solids.

• Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid

• fraction for discharge.

• Vibration-proof design realizes long working life.

• Full automation possible with PLC automatic control panel
Technical Parameters:

Model	Bowl Speed（rpm）	Capacity(Per Hour)	Running Load(Watts)	Dimensions, Overall(mm)
Model	Bowl Speed（rpm）	Capacity(Per Hour)	Running Load(Watts)	Width	Front-to-Back	Height
250	8500	500-800	4.0	850	850	1200
270	7300	1000	4.0	950	950	1200
300	7150	1500	5.5	1025	1300	1300
360	7056	2000-3000	7.5	1500	1100	1500
400	7038	3000	7.5	1500	1100	1550
500	6600	5000-8000	15.5	1772	1500	1855
550	6200	8000-15000	18.5	1970	1560	1970
730	4900	50000-80000	55.0	2580	1980	2340

Working principle:Thermal coupling through the drum motor drive to do high-speed rotation around the main axis, the liquid feed pipe from the top center of flow to the bottom of the drum, the disc surface diversion hole trend to drum wall, the centrifugal force field, compared with liquid weight of solid phase formation of sediment sink to the drum wall, light liquid pumps to the heart by the light liquid exit discharge.

Heavy liquid within the cone along the disc tend to drum wall, then up to the heavy liquid flows through the heart pump discharges them from the heavy liquid, thus completing the heavy liquid and light liquid separation.
Purification of beer yeast by DHC disk centrifuge
