Overview

Fast and remarkably simple, the Discover SP-D Clinical is specifically designed to digest small samples for clinical applications. This automated system will optimize your laboratory workflow.

Features

Most digestions complete in under 6 minutes (including cool down)

Automatically loads and unloads samples

Temperature and pressure control of every sample

Documentation of every sample

Simple-to-use vessels with snap-on caps

How it Works

Workflow

Just weigh, snap, load, and you’re done.
1. Weigh the sample and add acid

2. Snap on the cap and place in the system

3. Select the method(s) and press “Play”

After you press the play button, your work is done. The system will do the rest for you and let you know when the fully digested sample is ready.


Technologies

Unique technologies that make your work easy.

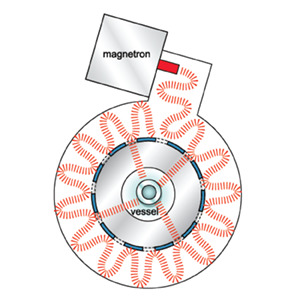

Precise & Efficient Energy Delivery

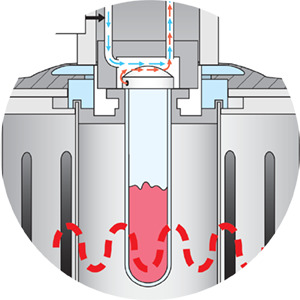

The Discover SP-D Clinical’s Focused™ microwave cavity produces a highly defined and extremely homogeneous microwave field. This cavity design enables the system to process samples faster and more reproducibly than batch systems.

No Loss of Volatile Elements

Batch systems use vessels that vent once the vessel reaches a set pressure. With CEM’s patented Activent® technology, the Discover SP-D Clinical automatically measures the pressure and controls when the vessel vents. This enables discreet venting at pre-set limits, preventing loss of elements, including volatiles such as mercury and arsenic.

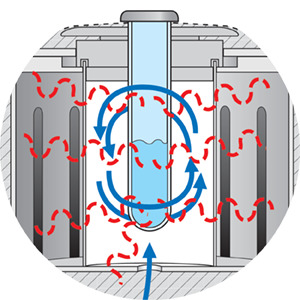

Faster Digestions, Rapid Cooling

CEM’s patented PowerMax™ cooling provides the ability to cool the vessel rapidly and avoid many exothermic reactions that can occur during digestion. In addition, it delivers rapid cooling after digestion, allowing the Discover SP-D Clinical to process samples in as little as 6 minutes per sample.

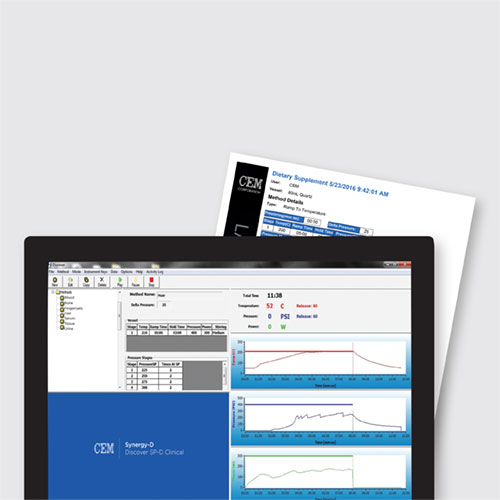

Software that does the hard work for you.

Real-time display of temperature, pressure, and microwave power
Pre-installed methods for many sample types
Sample queues that mix methods and sample types in a single run
21 CFR Part 11 Compliant
Automatically generate a report of run conditions for every sample, not the batch

Documentation

The Discover SP-D Clinical system automatically generates a lab report to verify digestion conditions were met for each individual sample, not the batch. Temperature, pressure, and power graphs are documented, as well as the maximum temperature and pressure during the digestion.


Benefits
Throughput

The first ever digestion system specifically for clinical throughput.

Digest One Sample In 6 Minutes
Don’t waste time batching samples. Discover SP-D Clinical digests samples one at a time, giving you one fully digested and cooled sample in only six minutes. Load the 48-position auto-sampler and let the system digest 10 samples an hour while you tend to other tasks.

Digest A Rush Sample Immediately
The advanced Synergy-D Clinical software will allow you to interrupt a pre-programmed run to accommodate a rush sample. In just about 6 minutes you will have a digested sample in hand ready for analysis, then the software will resume running as programmed.

Discover SP-D Clinical Gives You Flexibility
Digest up to 48 small clinical samples, completely unattended. Discover SP-D Clinical gives you the flexibility to prepare different sample sizes, types and acids within one batch.
Vessels

Digest small samples with low volume vessels.
The Discover SP-D Clinical was designed specifically to digest small clinical samples. Digest samples as small as 5 mg or up to 100 mg in one of the clinical vessels.

Snap-on Caps

There’s no need for clamps or torque wrenches.

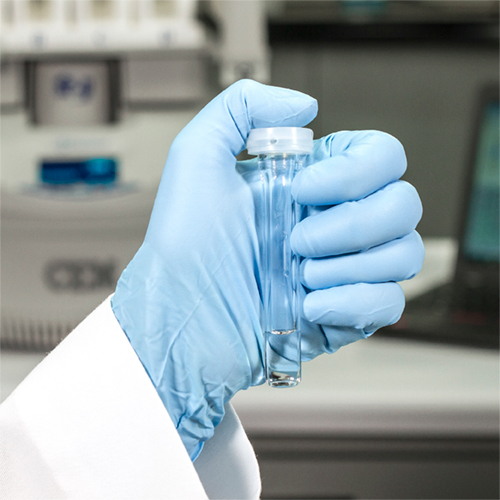

Our patented, and easy-to-use snap-on caps eliminate the need for clamps or torque wrenches. With just the push of a thumb, the caps will be safely secured and ready for digestion.



Automation

Process 48 clinical samples completely unattended.

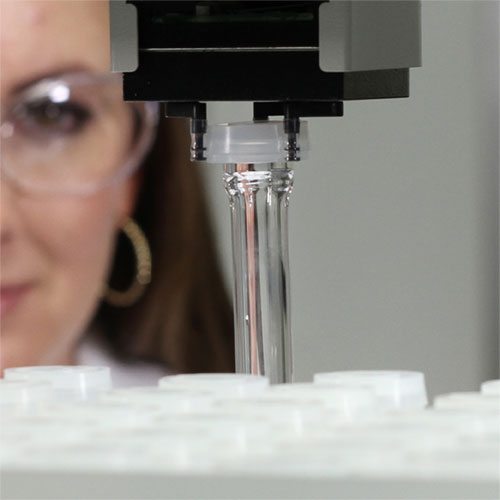

Load up to 48 samples in the autosampler rack and the Discover SP-D Clinical does the rest. The system sequentially loads each sample into the microwave, digests it to a clear solution in minutes, then returns it to the rack, after cooling, freeing you to leave the system running unattended so that you can tend to other tasks in the lab, or let it run overnight and start your day ready for analysis.



Flexibility

Mix your samples, vessels, and acids.
Digest any clinical sample (as small as 5 mg)
4 or 10 mL vessels can be run with different acids, in the same batch
Fully documented pressure and temperature control

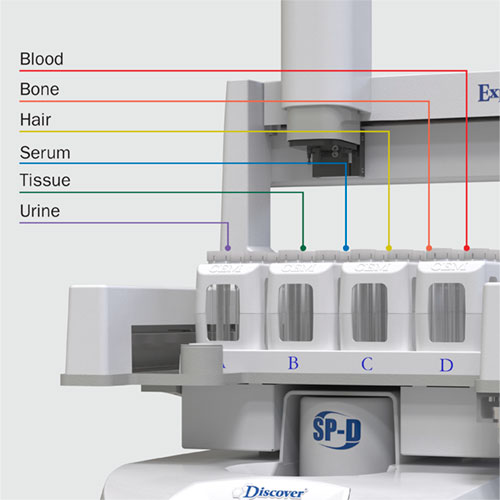

To the left is an example of how an SP-D Clnical could be loaded with a variety of samples requiring unique acids and temperature settings for the same run. The SP-D Clinical can handle it, giving you flexibility in your work.
