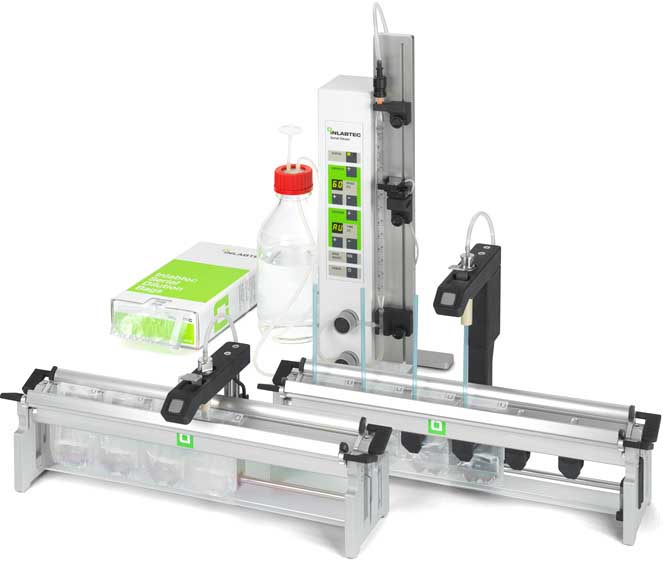

Inlabtec Serial Diluter Sample prep done cleverly

The Inlabtec Serial Diluter range is the 21st century alternative to using test tubes for performing serial dilutions (patent pending). These systems are fully ISO-compliant and offer unprecedented cost and quality benefits in combination with maximum environmental relief.

Main benefits Demo Videos :

• Prefilled test tubes not needed anymore
• Ergonomic and Intrinsically safe dilution process
• Automatic dilutions for constantly high data quality
• Simple and easy replacement of existing dilution protocols
• Pays off quickly and preserves resources
•   Swiss Quality ensures long term reliability

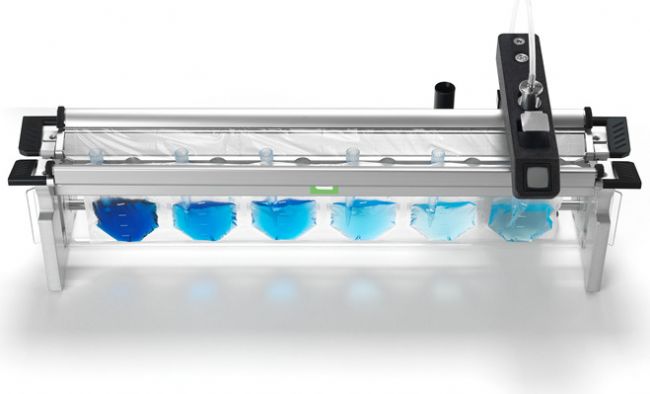

Diluting reduced to pipetting

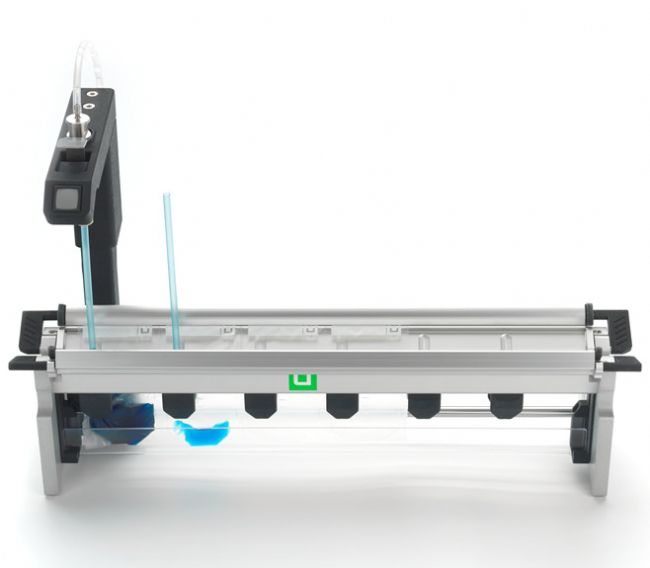

Add the sample with the 1ml tip or straw into the first bag, connect the dosing arm and simply press the button for automatic dilution and mixing.
This automatization leads to a fast and high individual-independent reliability of the sample dilutions within < 4 seconds and frees the user from the tiresome handling of test tubes and caps as well as of mixing manually test tubes.

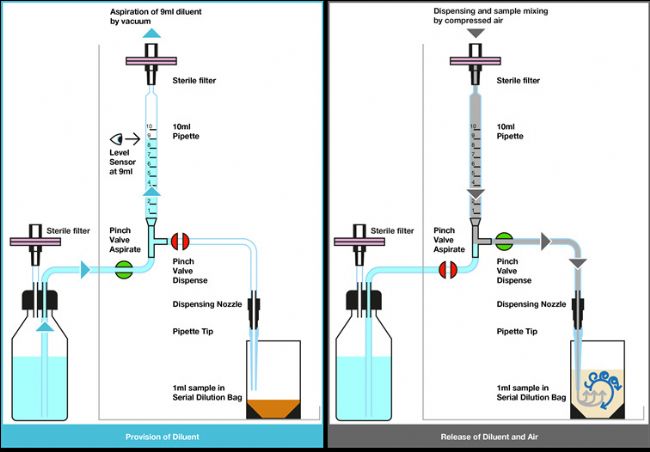

How does mixing work? The working principle

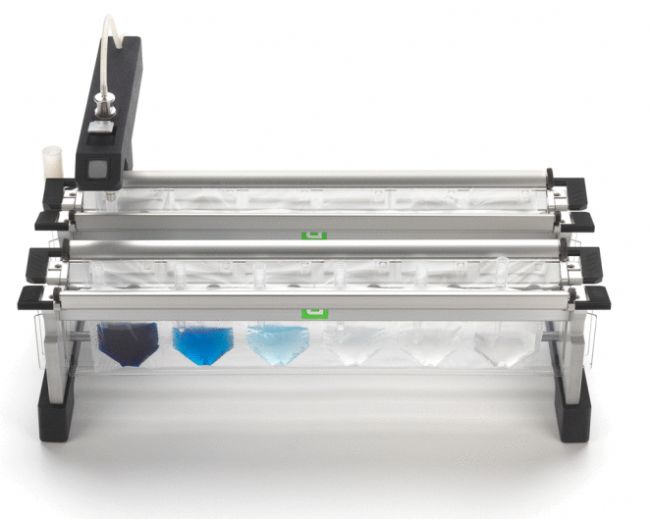

New: The Serial Diluter TA12
With the Serial Diluter TA12, a twelve-step serial dilution is a breeze! The telescopic dosing arm makes it easy to change between the two rows of six serial dilution bags each.

Makes control of high cell density samples really efficient! Demo Video TA12

Especially designed for effortless dilutions

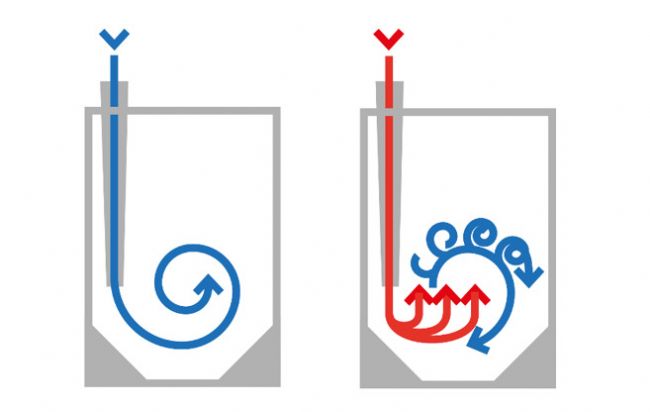

By pressing a button the diluent flows through the tip with the sample into the bag and forms a counter clockwise liquid vortex. A sterile air blast causes turbulences which shortly afterwards ends into a second clockwise vortex. This process leads to perfectly mixed and diluted samples. Like mixing a syrup: First the sample into the bag, then the diluent!

Demonstration of a dilution in a Serial Dilution Bag as download or on YouTube

Easy installation and visibly accurate dilutions
Commissioning is done by inserting hoses in the pinch valves and the pipette into the holder: Demo installation as download or on YouTube.

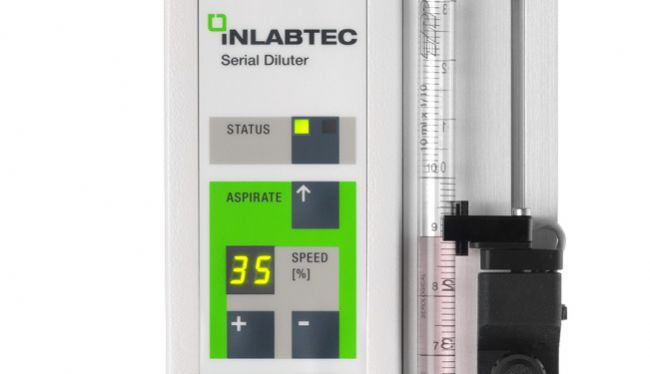

Liquid volume setting is straightforward – simply place the sensor alongside the scale of the pipette at the required volume. The volume can be checked immediately by a quick look at the meniscus position of the liquid. The dosing accuracy is easily checked with a balance as shown by demo video Verification of dispensed volume

Direct visual liquid control by the pipette scale

Complete system in Swiss quality
The Serial Diluter is a Swiss product of the highest quality for daily routine work. Maintenance is limited to the sporadic change of sterile filter and adhesive gripper.

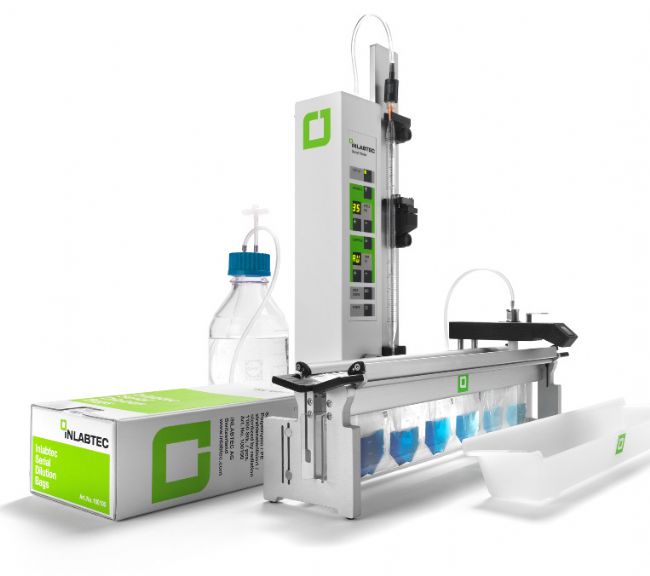

Each Serial Diluter is supplied as a ready-to-use system including tubing set, dispensing nozzle, connector cap GL 45, box of Serial Dilution Bags and a bagshell.
The Serial Diluter complies with the requirements of the standard method ISO 6787-1: 1999 / ISO 7218: 2007. Thousands of samples of all kinds and origins are reliably diluted daily. See Inlabtec selection of tested samples and Campden BRI, UK, tested samples.

Built for daily intensive use

Permanent system sterility
The Serial Diluter exclusively dispenses the fluids connected. The dispensing nozzle never comes into contact with the sample, as a pipette tip or a straw is between. This ensures system sterility until the connected sterile diluent is completely depleted.

Closed system for long-term sterility
