Kylin-Bell launches the New Magnetic Agitator GL-5250 Series

The Magnetic Agitator GL-5250 Series was introduced in October of 2014.  This special design concept has changed the outlook of the traditional domestic magnetic agitator series.  Kylin-Bell Lab Instruments is always looking to upgrade and improve the appearance of our products.  This series has adopted the integration of shells that is flame retardant with enhanced plastic molding.  Therefore making our product thermal resistant to acid, alkali, and organic solvents.

This GL-5250 series has an unique design for heating.  The heating plate is made of aluminum alloy casting and the external coating is made of teflon material.  This creates a unique effect on the thermal conductivity by allowing excellent heat control with corrosion and cold resistance.  The product is also made with double insulation at the bottom of the heating plate which will improve the thermal efficiency and therefore avoids any kind of spay to the body.

This new product was created with a unique digital circuit design that will allow the users to accurately control the temperature of the heating plate.  The configured sensor container will directly control the temperature of the solution.

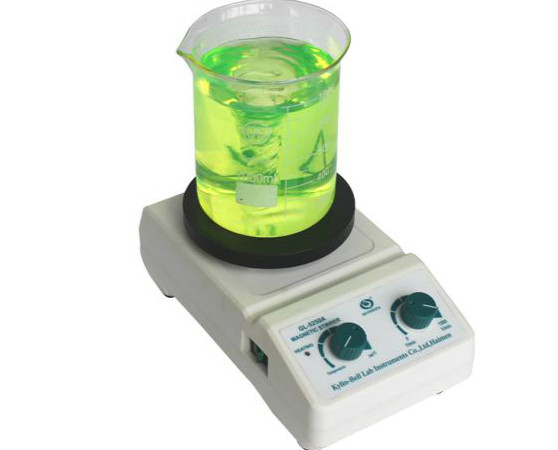

GL-5250A





























Technical Specifications：
Rotation speed:  100-1500 rpm
Maximum agitation capacity:  5L
Heating temp:  Room temp +5℃-340℃
Protection temp:  350
Temp control mode: Electronic
Diameter of heating plate:  135 mm
Maximum heating function:  200 W
Power:  220 V/ 50 HZ
Overall dimension:  260x150x115 mm

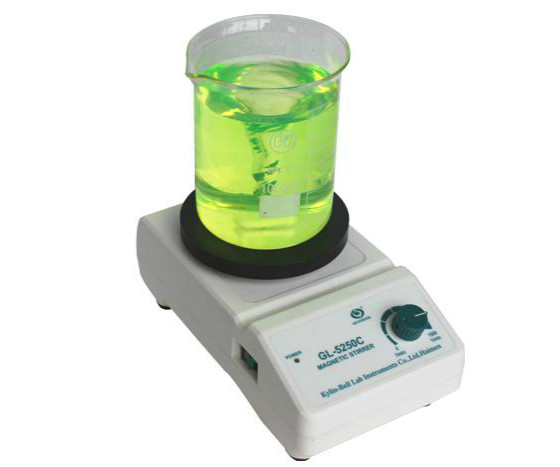

GL-5250C





























Technical Specifications：
Rotation speed:  100-1500 rpm
Maximum agitation capacity:  5L
Diameter of plate:  135 mm
Power:  220 V/ 50 HZ
Overall dimension:  260x150x115 mm

If you need detailed information please call the company telephone: 0513-82707780 or click on the company's web site www.ql-lab.com
