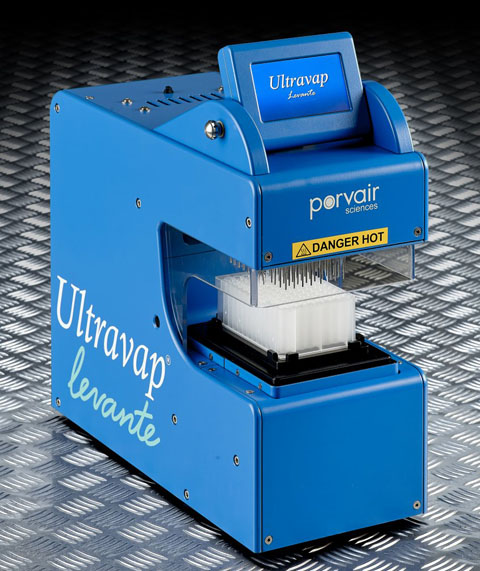

Ultravap Levante:Automation-Ready Blowdown Evaporator

The Ultravap Levante from Porvair Sciences is a next generation nitrogen blowdown evaporator designed to meet the needs of the modern automated laboratory.

The Ultravap Levante comes with an RS232 connection and a remote command set enabling it to connect to and be operated from most commercially available robotic liquid handling systems. Porvair have positioned this automation-ready microplate evaporator to appeal to the budget-conscious laboratory who may wish to automate their sample dry-down bottleneck in the future.

With the Ultravap Levante you get full-colour touchscreen graphic displays, an integrated auto-ranging power supply and built-in solvent fume venting. Combined with real-time run displays showing actual gas temperature, gas flow rate and stage height the Ultravap Levante puts you in full control of your evaporation protocols. Offering multi-step ramped programming with full alphanumeric program naming, the Levante offers the capability to automatically handle even complex evaporation protocols effortlessly.

Designed around a standard ANSI/SLAS plate “nest” to accept most microplate formats and tube racks, the Ultravap Levante can accommodate tubes up to 80mm in height in a variety of configurations to allow the use of 2 Dram vials, 1.5ml HPLC vials, bar-coded tubes in racks and many other common formats. Evaporator heads are made to match these formats in 24-, 48-, 96- and 384-well configurations. The unique Porvair 96-well spiral needle head, which creates a vortex in certain plates to speed up evaporation, can also be used on the Ultravap Levante.

The Ultravap Levante can be operated from an in-house supply of nitrogen / clean dry air or from a gas cylinder. The blowdown technique employed by the Ultravap Levante has been widely adopted by labs worldwide for removing chromatography solvents such as dichloromethane, acetonitrile, methanol and hexane.

For further information on the Ultravap Levante please visit www.porvair-sciences.com/en/services-menu/equipment/ultravap-levante/  or contact Porvair Sciences on +44-1978-666222 / int.sales@porvair-sciences.com .

Established in 1992, Porvair Sciences is one of the largest global manufacturers of ultra-clean microplates for life science, synthetic chemistry and many other applications.  Porvair Sciences Ltd. is a wholly owned subsidiary of Porvair plc.

---------------------
