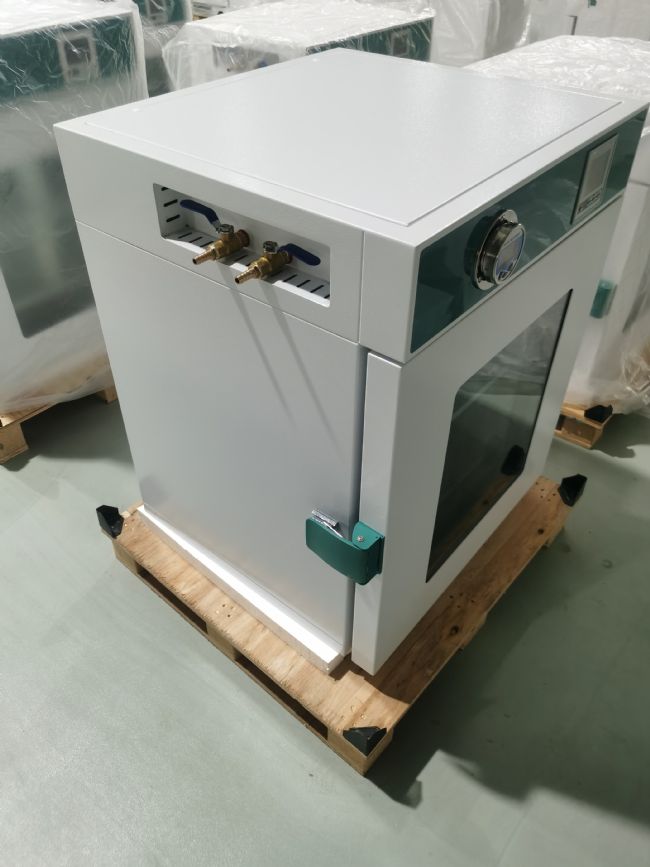

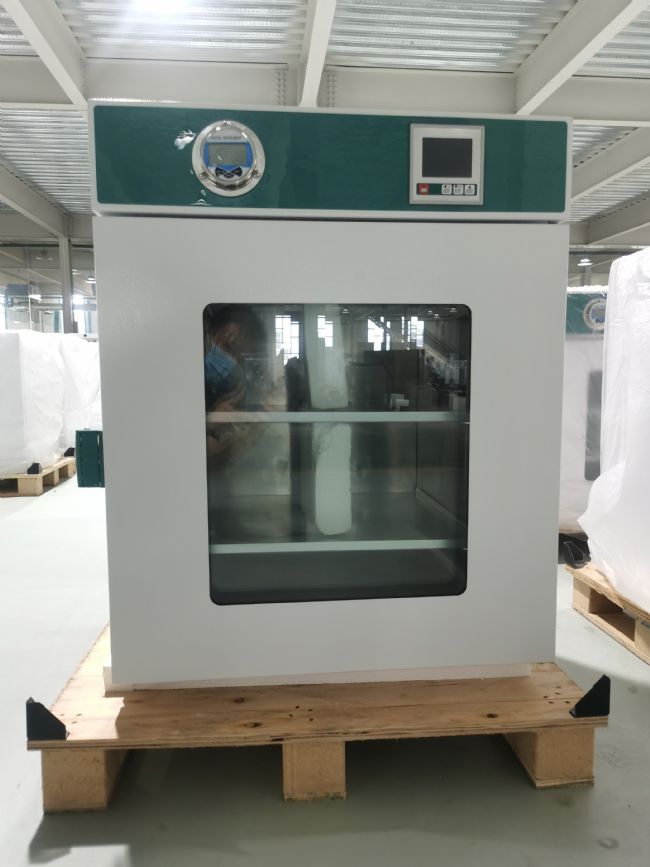

Precision Vacuum Drying Oven CE and ISO




Descriptions：

1. 4-sides heating method,temperature conduction by shelves,more efficiency.

2. with inflatable port ,once-forming thermostabilitySilica gel sealant strip,with good tightness.

3. Double observation glass window,inner is explosion-proof glass,outside is resin protection plate,more safety.

4. Fastening handle,convenient for opening and closing.

5. LCD controller ,multiple groups of date 3 display on one screen,intelligent PID control system,with PT100 sensor.

6. LCD vacuum gauge,accuracy class 0.5 ,Mpa, Kpa,bar, Psi,KGF/cm2 five pressure units optional switch.

Technical Parameters :


Model		DZ-1BIV	DZ-2BIV	DZ-3BIV
Heating mode		Four walls heat conduction and decompression
Function	Temp. Range	RT+10-250℃
	Useful vacuum degree Range	<133Pa
	Temp. Resolution Ratio	0.1℃
	Temp. motion	±1℃
	Heating-up time	80min	100min	120min
Structure	Inner Chamber	High quality stainless steel sheet
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	Aluminum silcate fiber
	Heater	Stainless steel electric heating tube
	Observation window	Bullet proof glass, acrylic exterior protection
	Vacuum meter	Pointer type, accuracy class 2.5
	Nozzle diameter	10mm
	Power rating	0.8kW	1.4kW	2.0kW
Controller	Temp. control mode	Two temperature section PID intelligent
	Temp. setting mode	Touch button setting
	Temp. display mode	LCD display screen
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop
	Additional function	Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
	Sensor	pT100
Safety device		Over temperature sound-light alarm
Specification	Inner Chamber size(W*L*H)(mm)	300*300*270	415*370*340	450*450*450
	Exterior size (W*L*H)(mm)	480*480*606	560*540*680	640*590*780
	Packing size (W*L*H)(mm)	590*550*750	704*620*814	739*700*889
	Volume	24L	52L	91L
	Number of shelf	2
	Load per rack	15kg
	Shelf space	100mm	140mm	185mm
	50/60HZ)Current rating	AC220V/3.6A	AC220V/6.3A	AC220V/9.1A
	NW/GW (kg）	42/52	67/92	82/105
Accessory	Shelf	2
	Shelf frame	4
optional accessories		Silica gel connecting pipe, vacuum pump,shelves




Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.

All our FAITHFUL products have passed the CE Certificate.
