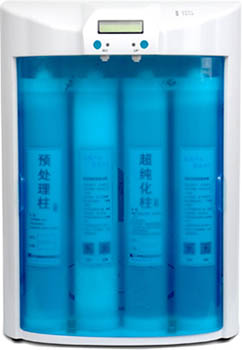

UPT classic ultra pure water,Sichuan YOUPU ultra pure Technology Co. Ltd._specification/price/image

Product Detail
Company Profile

Product description

Modular design, quick insertion structure, convenient and rapid installation and consumables replacement, can be directly purified water to meet the national standard GB6682-2008 laboratory class pure water and ultrapure water.

Functional characteristics

1.City tap water is influent, and RO water and UP ultra pure water can be produced simultaneously;

2.The medical grade PP material is used to form injection molding material, and the filter column is more reliable;

3.The ultra fast purification column mounted europtronic latest patent design, built-in micro permeable filter, effectively prevent micro particle precipitation;

4.The system has automatic washing RO film function;

5.Packaging circuit design, good moisture resistance;

6.The use of high-strength ABS engineering plastic chassis, never corrosion.

Technical parameter

Model	UPT^®-Ⅰ-5/10/20T	UPT^®-Ⅱ-5/10/20T
Influent water source	Total dissolved solidsTDS<200ppm,Tydraulic pressure0.10-0.40Pa,Water temperature5-45℃
Water production	5/10/20L/H	5/10/20L/H
Effluent flow	1.5-1.8L/min(Tank water storage)
Effluent quality of RO	conductivity≤Inlet conductivityx2%（On-line monitoring）
Effluent quality of UP	resistivity18.2MΩ.cm(On-line monitoring)	resistivity18.2MΩ.cm(On-line monitoring) Micro particles≤1/ml Microorganism≤1cfu/ml
Host size（mm）（Height * width * depth）	400×340×560（台上式）
weight（kg）	20
Work power	AC220V/50HZ
Tank configuration	The bench model is equipped with 15 liter pressure pure water tank
Scope of application	Preparation of solutions, reagents, buffers, etc. Student experiment / ware wash Routine qualitative analysis of physical and chemical examination......	Atomic absorption spectrometry (AAs) / atomic emission spectrometry (AES), ion chromatography (IC), high performance liquid chromatography (HPLC)......

Order note：

1.This product refers to the water temperature at 25 DEG RO film rated water temperature decrease 1 DEG C, RO membrane water production fell by about 3%, when the water temperature is lower than 5 DEG C, RO film will stop production of water, the water temperature factors into the area shall be decreased when ordering user selection in winter;

2Raw water quality is poor (TDS>200ppm) areas, RO pure water quality may be reduced to more than 10 s/cm conductivity, it is recommended to add water softener, water quality requirements higher, the user suggested the selection of UPR+UPHW combination program;
