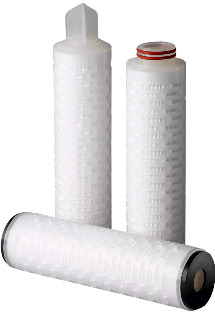

SupaPore PPG Microfiltration cartridges have been designed as effective prefilters for membrane and as final polishing filters for many liquid processing applications. Manufactured using 100% polypropylene media, drainage layers and hardware, the SupaPore PPG pleated depth cartridge offers excellent chemical compatibility across a wide range of liquids processing applications. Its thermally bonded construction ensures minimal extractables and its high filtration efficiency makes it an excellent choice for use in many manufacturing & water treatment processes.

The construction utilises thermal welding techniques to seal all the components therefore eliminating adhesives and extractables and optimising cartridge integrity.

SupaPore PPG cartridges use pleated depth media and are available in standard diameter and Junior sizes with micron ratings from 0.2µm to 40µm in the full range of industry standard lengths and end cap styles.

Product Features

100% polypropylene construction

Absolute removal ratings Beta ratio 5000

Extended life version available

No fibre migration

Modular construction

Standard and Junior configurations

Materials meet US FDA Title 21 and USP Class VI requirements

Meets the requirements for food contact as detailed in European Regulation (EC) Number 1935/2004

Suitable for most sanitisation regimes including steaming, autoclaving, hot water flush and most common sanitising agents.

(Note: Steaming, autoclaving and hot water sanitisation must use the Reinforced Polypropylene only.)

Amazon Filters manufactures a comprehensive range of filter housings for SupaPore cartridges including the industrial 50 and 60 Series and the 70 Series for hygienic applications. Please consult our Sales Office for further details on the full range.

Features and Benefits

Absolute removal ratings for consistent and reliable performance

Pleated depth media for maximum dirt holding capacity

High surface area giving high flow rates and low initial pressure losses

XP - Extended life version available for more challenging applications

PP - Wide chemical compatibility using 100% polypropylene, meets FDA requirements

Range of Absolute ratings from 0.2 to 40µm

Thermal bonding process eliminates adhesives and ensures minimal extractables

Identification mark on every cartridge

Comprehensive Product Validation Guide Available

All individual packing bags are anti static

Industries and Applications
