Overview

The SMART 6 is the most technologically advanced microwave moisture analyzer in the world for rapid moisture / solids analysis. The system utilizes a combination of microwave and infrared to rapidly analyze moisture and solids in any product. This patented dual-frequency drying energy source provides the most rapid and complete drying available, for the widest range of sample types.

Features

Up to 40% faster (as compared to SMART 5 Turbo)

Analyze both dry and wet products on one system

Compact and lightweight for easy at-line placement

Direct loss on drying measurement

Utilizes AOAC approved methodology: 985.14, 2008.06, PVM 1:2004

Dual-Frequency Drying
Analyze wet and dry
samples with unmatched speed.

Dual-frequency drying is an innovative process based on a combination of microwave and infrared energy sources controlled by an intelligent processing system. The low frequency microwaves penetrate the entire sample and rapidly remove volatiles through dipole rotation, while high frequency infrared energy evenly heats the surface and removes non-polar components through molecular vibration. This prevents burning and incomplete drying, which can arise from single frequency based Moisture Analyzers. The result is a direct method for virtually any sample type, with faster drying than traditional microwave and infrared-based systems.

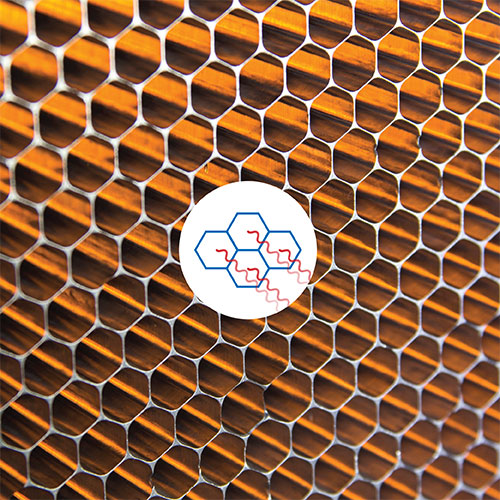

Collimated Energy

Accurate and repeatable results come standard.
Stray infrared irradiation can negatively impact sample temperature readings with the use of infrared temperature sensors. A SMART 6 has a unique honeycomb lattice providing collimated infrared irradiation for sample heating, thereby avoiding stray light. This provides highly accurate temperature control.

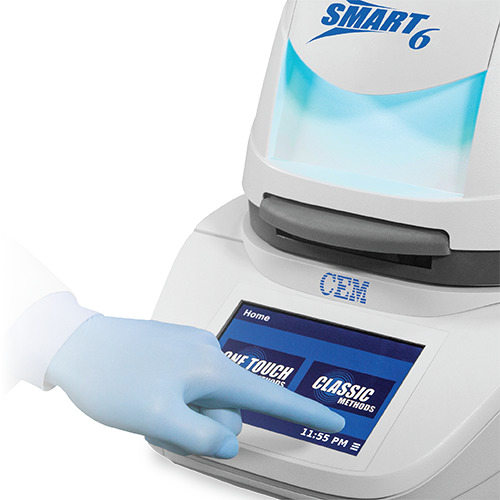

Preinstalled Method Library

Ready-to-use methods are one touch away.
A simple touch is all it takes. Leave method development behind with SMART 6 One Touch Technology. A library of ready-to-use methods is ready for download to test virtually any sample type.

Bringing a new product online is simple with SMART 6, with little or no method development required for most samples. Different facilities within an organization can use the same method to generate the same results across the board.

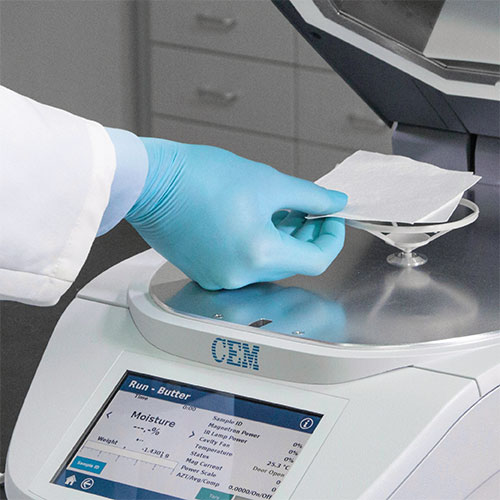

Simplicity

Simple steps to run any sample.
1. Tare pads
2. Add sample
3. Press start
