Launch of DP74 Microscope Digital Camera: Intelligent Imaging for an Improved Workflow

hits:323     Date:11/02/16

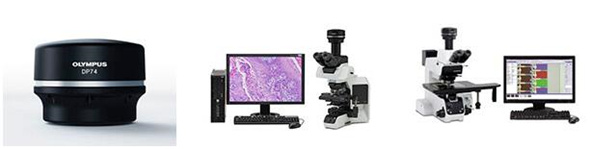

DP74 microscope digital camera, Biological microscope configuration, Industrial microscope configuration

Olympus Corporation (President: Hiroyuki Sasa) today announced the international launch, by its Scientific Solutions Business, commencing in November 2016, of the DP74 microscope digital camera.

The microscope digital cameras used on both biological and industrial microscopes, and they make it easier to capture and record images while viewing them on a monitor. Olympus sells a variety of cameras designed for microscope use, including its DP microscope digital camera series.

The new DP74 is the successor to the DP73 that has earned a strong reputation among microscope users. The ability of the DP74 to display high-speed live images at 60fps*1 (four times faster than the DP73) provides easy operation, with the smooth live images at any time. Moreover, the new model is equipped with numerous functions for simple and quick operation, such as the Position Navigator function.

*1
Frames of video data displayed per second

Launch Overview
Name
Launch Date
DP74 Microscope Digital Camera
For biological : November 1, 2016
For industrial : November 16, 2016

Main Features
  1. Developed as a camera that any customers can observe easily with smooth imaging performance at any time
  2. Position Navigator function can keep track of the observation location, even when viewing at high magnification
  3. New functions enhancing efficiency and comfort for operators
Details of Main Features
1. Developed as a camera that any customers can observe easily with smooth imaging performance at any time
The ability to perform live imaging at 60fps (four times faster than the previous model) displays judder-free images on the monitor even during rapid stage movements. This makes observation easier in a variety of applications, such as leading-edge research or the observation of pathology specimens and other testing procedures.

2. Position Navigator function can keep track of the observation location, even when viewing at high magnification
It is not uncommon to lose track of the observation location when using a microscope with a high-magnification objective. The position navigator keeps track of your location, so you will always know precisely where you are on your sample when making high-magnification observations. Furthermore, the ability to store the observations and map together is useful when preparing documentation.

3. New functions enhancing efficiency and comfort for operators
A problem with the amplification of very low levels of light, which is required when performing fluorescence imaging*2, is that it can result in intrusive noise in the live images. Live noise reduction feature added on DP74 makes it possible to capture low-noise, high speed images of live specimens in real time. This makes the microscope easier to operate when viewing dark specimens and enables rapid focusing. The DP74 also equipped with the LiveHDR that provides crisp imaging of features such as undulations or scratches on electronic components or semiconductor surfaces.

*2
A technique whereby a fluorescent dye is added to colorless and transparent cells so they can be imaged by capturing the tiny amounts of light emitted by the dye

Main Specifications of DP74
Camera Type
Single-chip color camera
Piezo-driven pixel shifting, Peltier Cooling system
Imaging Sensor
1/1.2 inch color CMOS, global shutter
Dimensions, Weight
Camera Head
116 mm (ϕ) 脳 87.7 mm (H), 1.1 kg (approx.)
Interface Cable
2.5 m (approx.)

Olympus's Scientific Solutions Business
Its main products are optical microscopes and industrial videoscopes and non-destructive testing equipment. Through these products, the Scientific Solutions Business helps to keep the infrastructure of society safe and secure, including research and development in the medical, life science, and industrial fields; quality improvement at production facilities; and inspections of aircraft and other large plant, etc.
